Sullins | SMH150-LPSE-D25-ST-BK

Manufacturer Part #

SMH150-LPSE-D25-ST-BK

50 Position Total Dual Row 1 mm Pitch Straight Male Header

ECAD Model:
Mfr. Name: Sullins
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
Sullins SMH150-LPSE-D25-ST-BK - Technical Attributes
Attributes Table
No of Positions: 50
Pitch: 1 mm
Style/Orientation: Straight Header/Plug
Termination: Solder
Type: Header
Features & Applications

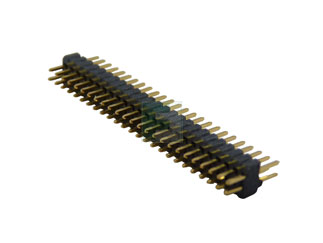

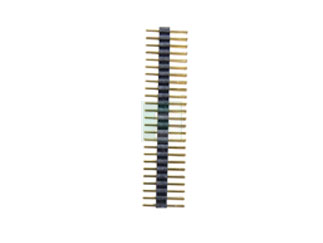

The SMH150-LPSE-D25-ST-BK is a .059" Gold 2x25 Position (50 Pin) Straight Male Header.

Features:

  • Male Header
  • Insulator height 1.50 mm[.059”]
  • .000010” Gold Overall
  • 1 mm Dual Readout
  • 50 total contacts
  • Straight Thru Hole Head 1.80 mm[.071"] Tail 2.50 mm[.098"]
  • Black

Specifications:

  • Insulator Material: L.C.P, UL 94V-0, Black color
  • Contact Material: Phosphor Bronze
  • Current Rating: 1 AMP
  • Insulator Resistance: 1000 Mega ohms min
  • Contact Resistance: 20 Milli ohms Max
  • Dielectric Withstandind: AC 300 V
  • Operating Temperature: -40° C to +125° C
  • Processing Temp: 260° C for 10 Secs Max
  • Mates with Female SFM Series
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
1,023
Factory Lead Time:
8 Weeks
Minimum Order:
1000
Multiple Of:
1
Total
$6,170.00
USD
Quantity
Unit Price
4
$6.41
15
$6.34
30
$6.30
100
$6.24
200+
$6.17
