Hirose Electric | DF11-8DS-2DSA(05)

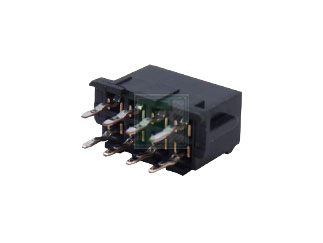

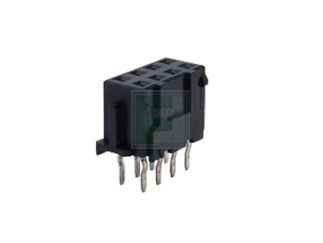

The DF11-8DS-2DSA(05) is a Part of DF11 Series 8 Position (4x2) 2 mm Pitch Straight ThroughHole Dual Row Socket.

Features:

• Space-saving on Board Realized
  • Double rows of 2mm pitch contact has been condensed within the 5mm width. The multiple number of signals can be secured in the same space as the conventional 2mm single-row contact.
• Broad Variation
  • The insulation displacement and crimping methods are prepared for connection. Thus, board to cable, in-line, board to board connectors are provided in order to widen a board design variation.
    In addition, "Gold" or "Tin" can be selected for the plating according application, while the SMT products line up.
• Applicable Wire Covers Wide Range
  • According to the double rows of 2mm pitch compact design, the applicable wire can cover AWG22 to 30.
• The ID Type Connector Achieves Connection WorK
  • Using the full automatic insulation displacement machine, the complicated multi-harness can be easily connected, reducing the man-hour and eliminating the manual work process.
• Major Features of ID Machine AM700/DF11
  • Perform the multi-harness
  • The setup time has been widely reduced. (10 minutes maximum)
  • Space saving design.(About half space compared with the conventional machine)
  • Minimize initial cost with low cost
  • The harness data can be saved in the floppy disk and easily changed
