Manufacturer Part #
1-103957-4

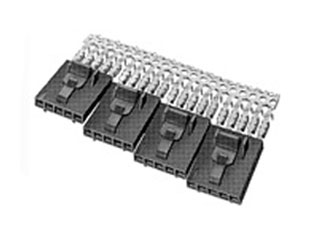

AMPMODU 4 Position Single Row 2.54 mm Pitch Crimp Preloaded Socket Housing
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1155 per Tube | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
TE Connectivity 1-103957-4 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=1-103957-4&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--pin-and-socket-connectors--socket-plug-wire-mount/1-103957-4-te-connectivity-3179017
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=1-103957-4&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--pin-and-socket-connectors--socket-plug-wire-mount/1-103957-4-te-connectivity-3179017
TE Connectivity 1-103957-4 - Technical Attributes
Attributes Table
| Type: | Wire to Board |
| No of Positions: | 4 |
| Pitch: | 2.54 mm |
| Style/Orientation: | Free Hanging Socket/Receptacle |
| Termination: | Crimp |
Features & Applications
The 1-103957-4 is a Part of AMPMODU Series with 4 Position single Row 2.54 mm Pitch wire mount Crimp Socket Housing Receptacle Connector.
Features:
- Product Type = Connector
- Connector Type = Housing
- Termination Method to Wire/Cable = Crimp,Insulation Displacement crimp(IDC)
- Wire Insulation Diameter (mm [in]) = 1.37 [0.054]
- Connector Series = MTE
- Contact - Rated Current (A) = 3
- Termination Resistance (m?) = 15
- Insulation Resistance (M?) = 5,000
- Dielectric Withstanding Voltage (V) = 600
- Solder Tail Contact Plating = Bright Tin
- Centerline (mm [in]) = 2.54 [0.100]
- Row-to-Row Spacing (mm [in]) = 2.54 [0.100]
- Number of Positions = 4
- Number of Rows = 1
- Wire Range (mm [AWG]) = 0.12-0.40² [26-22]
- Contact Type = Socket
- Contact Plating, Mating Area, Material = Gold (15)
- Contact Base Material = Phosphor Bronze
- Connector Style = Receptacle
- Mating Alignment Type = Latched
- Housing Material = Thermoplastic - GF
- Operating Temperature (°C) = -65 – +105
- Applies To = Wire/Cable
View the 1-103957x Series of Sockets
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
17 Weeks
Quantity
Unit Price
1,155
$0.74
2,310+
$0.72
Product Variant Information section
Available Packaging
Package Qty:
1155 per Tube
