Manufacturer Part #
1-1123724-2

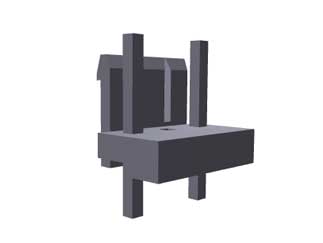

Economy Power Series 3 Position 7.92 mm Pitch Single Row Wire to Board Plug
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:16000 per Bag | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
TE Connectivity 1-1123724-2 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=1-1123724-2&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--pin-and-socket-connectors--socket-plug-wire-mount/1-1123724-2-te-connectivity-3808128
-
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=1-1123724-2&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--pin-and-socket-connectors--socket-plug-wire-mount/1-1123724-2-te-connectivity-3808128
TE Connectivity 1-1123724-2 - Technical Attributes
Attributes Table
| Type: | Wire to Board |
| No of Positions: | 3 |
| Pitch: | 7.92 mm |
| Style/Orientation: | Straight Header/Plug |
| Termination: | Solder |
Features & Applications
The 1-1123724-2 is a single Row 3 Position 7.92 mm Pitch wire to Board Plug.
Features:
- Product Line = Economy Power
- Product Type = Connector
- Connector Type = Header
- Termination Method to PC Board = Through Hole - Solder
- Mating Retention Type = Latching
- Contact - Rated Current (A) = 7.5
- Operating Voltage (VAC) = 250
- Header Type = Unshrouded
- Contact Type = Pin
- Contact Base Material = Brass
- Contact Plating, Mating Area, Material = Tin
- Connector Style = Plug
- Housing Material = PBT
- Housing Color = Natural
- Operating Temperature in °C = -25 – +105
- Applies To = Printed Circuit Board
- PCB Thickness, Recommended in mm = 1.60
- Contact Transmits (Typical Application) = Power
Mating Products:
- 1-1123722-2
- 2-1123722-2
- 3-1123722-2
- 4-1123722-2
View the Economy power Series of Plug
sPricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
17 Weeks
Quantity
Unit Price
16,000+
$0.074
Product Variant Information section
Available Packaging
Package Qty:
16000 per Bag
