Manufacturer Part #
102387-1

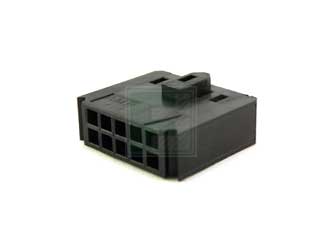

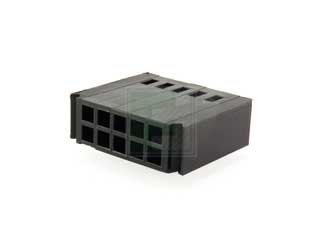

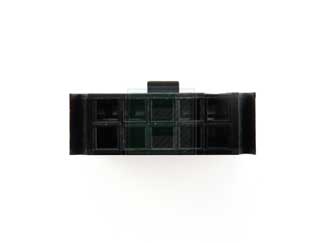

AMPMODU 10 Position Dual Row 2.54 mm Pitch Unloaded Socket Housing
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1 per Box | ||||||||||
| Date Code: | 2516 | ||||||||||
TE Connectivity 102387-1 - Product Specification
Shipping Information:
ECCN:
PCN Information:
*****FPCN111401 UPDATE*****Description of ChangesThis PCN is to notify that the 'shipment date of the change' in PCN-25-234561 will be 25-April-2025 instead of 19-MAR-2026. Please note that this correction does not affect the product's specifications, design, or drawings. Previous Date: 19-MAR-26 Corrected Date: 09-April-2025Reason for Change:1. Update made to correct PCN-25-234561 typo error. 2. shipment date of the change' in PCN-25-234561 will be 25-April-2025 instead of 19-MAR-2026.
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=102387-1&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--pin-and-socket-connectors--socket-plug-wire-mount/102387-1-te-connectivity-3914072
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=102387-1&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--pin-and-socket-connectors--socket-plug-wire-mount/102387-1-te-connectivity-3914072
TE Connectivity 102387-1 - Technical Attributes
| Type: | Housing |
| No of Positions: | 10 |
| Pitch: | 2.54 mm |
| Style/Orientation: | Free Hanging Socket/Receptacle |
| Termination: | Crimp |
Features & Applications
The 102387-1 is a Part of AMPMODU Series with 10 Position Dual Row 2.54 mm Pitch wire to Board Crimp Socket Housing Receptacle Connector.
Features:
- Product Type = Connector
- Connector Type = Housing
- Termination Method to Wire/Cable = Crimp
- Connector Series = Mod IV
- Housing Configuration = Both Ends Closed
- Contact - Rated Current (A) = 3
- Voltage Rating (VAC) = 250
- Termination Resistance (m?) = 12
- Insulation Resistance (M?) = 5,000
- Dielectric Withstanding Voltage (V) = 750
- Centerline (mm [in]) = 2.54 [0.100]
- Number of Positions = 10
- Number of Rows = 2
- Contact Type = Socket
- Connector Style = Receptacle
- Mating Alignment Type = Center
- Housing Color = Black
- UL Flammability Rating = UL 94V-0
- Housing Material = Thermoplastic-GF
View the 102387x Series of Sockets
Available Packaging
Package Qty:
1 per Box
