Référence fabricant
3-640442-7

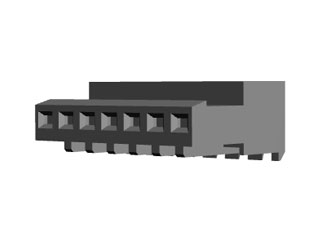

MTA-100 7 Position Single Row 2.54 mm Pitch 26 AWG Closed End IDC Socket
| | |||||||||||
| | |||||||||||
| Nom du fabricant: | TE Connectivity | ||||||||||
| Emballage standard: | Product Variant Information section Emballages disponiblesQté d'emballage(s) :2000 par Bag | ||||||||||
| Code de date: | |||||||||||
TE Connectivity 3-640442-7 - Spécifications du produit
Informations de livraison:
ECCN:
Informations PCN:
General Product Description:MTA100 and MTA156 Connector assembly (Receptacles)Description of ChangesThe listed part numbers will be transferred from TE Connectivity China to TE Connectivity USA location. An internal release based on TE Connectivity specifications will be executed before any parts will be delivered, which guarantees the performanceReason for Changes:Manufacturing location changeFirst Ship Date of Changed Items (Changed Parts Only):01-FEB-2023
Statut du produit:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=fr&field2=3-640442-7&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--pin-and-socket-connectors--socket-plug-wire-mount/3-640442-7-te-connectivity-2705143
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=fr&field2=3-640442-7&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--pin-and-socket-connectors--socket-plug-wire-mount/3-640442-7-te-connectivity-2705143
TE Connectivity 3-640442-7 - Caractéristiques techniques
| Type: | Wire to Board |
| No of Positions: | 7 |
| Pitch: | 2.54 mm |
| Style/Orientation: | Free Hanging Socket/Receptacle |
| Termination: | IDC |
Fonctionnalités et applications
The 3-640442-7 is a Part of MTA-100 Series with 7 Position 2.54 mm Pitch 26 AWG Closed End IDC Socket.
Features:
- Connector Type = Connector Assembly
- Connector Design = Closed End
- Wire Size (mm² [AWG]) = 0.12-0.15² [26]
- Voltage Rating (VAC) = 250
- Solder Tail Contact Plating = Tin
- Cable Exit Angle = 90°
- Contact Type = Socket
- Contact Plating, Mating Area, Material = Tin
- Contact Base Material = Copper Alloy
- Connector Style = Receptacle
- Housing Color = Blue
- Applies To = Wire/Cable
- Application Use = Wire-to-Board
Mating Products:
- 640452-7
- 640453-7
- 640454-7
- 640455-7
View the 3-640442x Series of MTA-100 Connectors
Emballages disponibles
Qté d'emballage(s) :
2000 par Bag
