JST | ACHR-03V-S

Manufacturer Part #

ACHR-03V-S

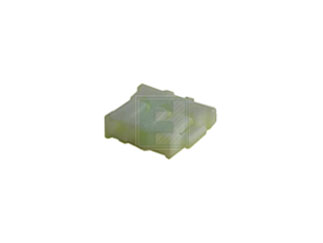

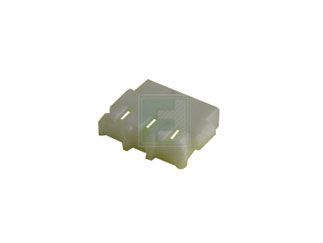

ACH Series 3 Position 1.2 mm Pitch Disconnectable Crimp Style Housing

ECAD Model:
Mfr. Name: JST
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
JST ACHR-03V-S - Technical Attributes
Attributes Table
Type: Wire to Board
No of Positions: 3
Pitch: 1.2 mm
Style/Orientation: Free Hanging Socket/Receptacle
Termination: Crimp
Features & Applications

The ACHR-03V-S is a part of ACHR series 3 position 1.2 mm pitch disconnectable crimp style housing. It has an operating temperature ranging from -25°C to +85°C.

Features:

  • Current rating: 2 A AC, DC
  • Voltage rate: 50V AC, DC
  • Contact resistance: Initial value/10 mO max
  • Insulation resistance: 100 MO min
  • Withstanding voltage: 500 V AC/minute
  • Applicable wire: Insulation O.D/0.5 to 0.63 mm
  • Contact JST if lead-free product is required
  • Top entry but side feed type
  • Connector for DC power supply
  • Corresponding to sucking nozzle of pick and place machine

View the available ACHR series of crimp style housing

Pricing Section
Global Stock:
0
USA:
0
On Order:Order inventroy details
2,000
Factory Stock:Factory Stock:
0
Factory Lead Time:
16 Weeks
Minimum Order:
1000
Multiple Of:
1000
Total
$60.50
USD
Quantity
Unit Price
1,000
$0.0605
3,000
$0.0589
5,000
$0.0582
15,000
$0.0566
25,000+
$0.0553
