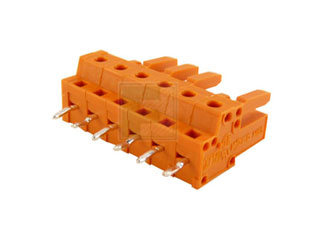

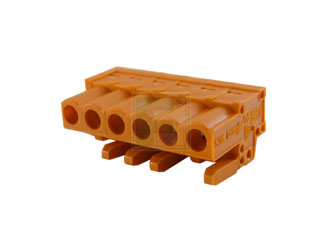

WAGO | 232-166

Manufacturer Part #

232-166

6 Position 5.08 mm Spacing Female Connector with Straight Solder Pin

ECAD Model:
Mfr. Name: WAGO
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
WAGO 232-166 - Technical Attributes
Attributes Table
Type: Terminal Block
Style: PCB Through Hole
No of Poles: 6
Termination: Solder
Features & Applications

The 232-166 is a 6 pole pin spacing 5.08 mm / 0.2 in solder pin 0.6x1 mm with coding fingers mating direction perpendicular to pcb with integrated fixing flanges

Product Specifications:

  • Product group 3 (Multi Conn. System)
  • Weight: 5.45 g
  • Color: orange
  • No. of connection Points: 6
  • No. of potentials: 6
  • pole count: 6
  • Height: 18.25 mm
  • Width: 31.98 mm
  • Depth: 11.6 mm
  • Pin spacing from: 5.08 mm
  • Pollution degree: 2
  • Measured voltage EN: 320 V
  • Measured shock voltage: 4 kV
  • Current intensity EN: 12 A

Applications:

  • Industrial
  • Automotive
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
10 Weeks
Minimum Order:
50
Multiple Of:
50
Total
$217.50
USD
Quantity
Unit Price
5
$4.49
20
$4.41
50
$4.35
125
$4.29
300+
$4.18
