Manufacturer Part #
A20221107

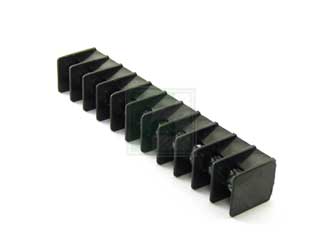

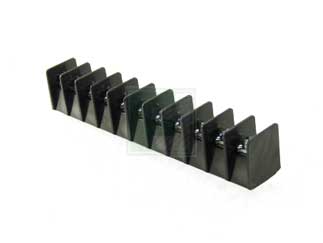

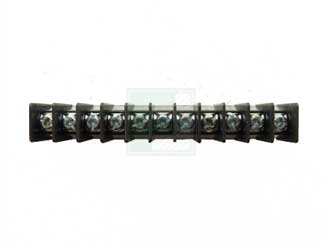

9.52 mm 11 Position Single Row Dual Barrier 12-22 AWG Terminal Block
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Eaton | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:50 per Tray | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
Eaton A20221107 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=A20221107&field4=Eaton&field18=https://p1na.futureelectronics.com/p/interconnect--terminal-blocks--barrier-strips/a20221107-eaton-4502258
-
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=A20221107&field4=Eaton&field18=https://p1na.futureelectronics.com/p/interconnect--terminal-blocks--barrier-strips/a20221107-eaton-4502258
Eaton A20221107 - Technical Attributes
Attributes Table
| Type: | Barrier Strips |
| Style: | Dual Barrier |
| No of Poles: | 11 |
| Wire Gauge: | AWG 12-22 |
| Termination: | Screw |
Features & Applications
The A20221107 is a Part of A2000 Series 11 Position Single Row Dual Barrier 9.52 mm Pitch 12-22 AWG Barrier Terminal Block
Specifications:
- Rating: A2: 30 A, 300 V*
- Center Spacing: 0.375” or 3/8” (9.52mm)
- Wire Range: #12-22 AWG CU
- Screw Size: #6-32 zinc-plated philslot
- Torque Rating: 9 lb-in.
- Base: Standoffs standard for easy flux washing
- Distance Between Barriers: 0.32” (8.1mm)
- Recommended PCB Hole Diameter: 0.076” (1.93mm)
- Operating Temperature: 105°C (221°F) max., -40°C (-40°F) min.
- Molded Material: Black, UL Rated 94V0 Thermoplastic
- Breakdown Voltage: 3400 V
Applications:
- Industrial and environmental controls
- Telecom
- Process logic control (PLC)
- Instrumentation
- Test and measurement
- Security and alarm systems
- Power supplies
- Traffic signals and controls
- Elevators and conveyors??
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
15 Weeks
Quantity
Unit Price
50
$6.46
100
$6.42
150
$6.40
200
$6.39
250+
$6.34
Product Variant Information section
Available Packaging
Package Qty:
50 per Tray
