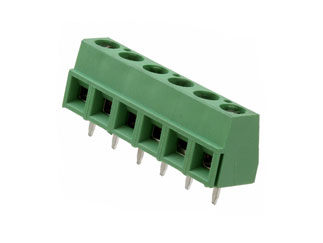

TE Connectivity | 282837-6

Manufacturer Part #

282837-6

Wire to Board 6 Position 5.08 mm Pitch 30-16 AWG Euro Style Terminal Block

ECAD Model:
Mfr. Name: TE Connectivity
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
TE Connectivity 282837-6 - Technical Attributes
Attributes Table
Type: Euro Style
No of Poles: 6
Wire Gauge: AWG 30-16
Termination: Screw Clamp
Style: Wire to Board
Features & Applications

The 282837-6 is a Wire to Board 6 Position 5.08 mm Pitch 30-16 AWG Euro Style Terminal Block

Product Features:

  • Product Type = Connector
  • Type of Connector = Wire Receptacle
  • Mount Angle = Vertical
  • Screw Material = Brass
  • Screw Size = M3
  • Screw Plating = Nickel
  • Amperes (A) = 13.5
  • Voltage (VAC) = 250
  • Side Stackable = No
  • Number of Positions = 6
  • Centerline (mm [in]) = 5.08 [0.200]
  • Wire Entry Diameter (Solid Wire) (mm²) = 0.03 – 1.50
  • Wire Entry Diameter (Stranded Wire) (mm²) = 0.03 – 1.00
  • Wire Entry Angle = Side
  • Closed End = Without
  • Interlock = With
  • Wire Range (mm [AWG]) = 0.05-1.40² [30-16]
  • PCB Tail Length (mm [in]) = 3.50 [0.138]
  • Screw Flange = Without
  • Contact Base Material = Brass
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
12 Weeks
Minimum Order:
400
Multiple Of:
400
tariff icon
Tariff charges may apply if shipping to the United States. An estimate of tariff charges will be calculated at checkout.
Total
$652.00
USD
Quantity
Unit Price
1
$1.70
30
$1.68
100
$1.65
250
$1.63
750+
$1.59
