TE Connectivity | 284507-5

Manufacturer Part #

284507-5

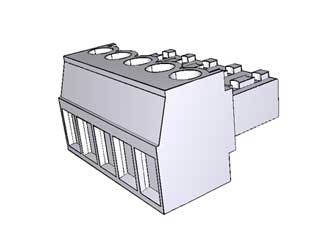

Plug 5 Position 3.81 mm Pitch 30-14 AWG Euro Style Terminal Block

ECAD Model:
Mfr. Name: TE Connectivity
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
TE Connectivity 284507-5 - Technical Attributes
Attributes Table
Type: Euro Style
No of Poles: 5
Wire Gauge: AWG 30-14
Termination: Screw Clamp
Style: Plug
Features & Applications

The 284507-5 is a Plug 5 Position 3.81 mm Pitch 30-14 AWG Euro Style Terminal Block

Product Features:

  • Product Type = Connector
  • Type of Connector = Plug
  • Shrouded = No
  • Mount Angle = Right Angle
  • Screw Material = Brass
  • Screw Size = M2
  • Screw Plating = Nickel
  • Amperes (A) = 11.0
  • Voltage (VAC) = 300
  • Side Stackable = Yes
  • Number of Positions = 5
  • Centerline (mm [in]) = 3.81 [0.150]
  • Wire Entry Diameter (Solid Wire) (mm²) = 0.05 – 1.50
  • Wire Entry Diameter (Stranded Wire) (mm²) = 0.05 – 1.50
  • Wire Entry Angle = Side
  • Interlock = Without
  • Wire Range (mm [AWG]) = 0.05-2.00²; [30-14]
  • Screw Flange = Without
  • Contact Base Material = Phosphor Bronze
  • Contact Plating, Mating Area, Material = Tin

Mating Products:

  • 284518-5
  • 284517-5
  • 284513-5
  • 1776135-5





Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
10 Weeks
Minimum Order:
1200
Multiple Of:
1200
tariff icon
Tariff charges may apply if shipping to the United States. An estimate of tariff charges will be calculated at checkout.
Total
$2,088.00
USD
Quantity
Unit Price
1,200+
$1.74
