TE Connectivity | 284516-8

Manufacturer Part #

284516-8

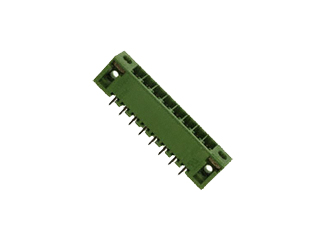

8 Position 3.50 mm Spacing Single Row Vertical Terminal Block Connector

ECAD Model:
Mfr. Name: TE Connectivity
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
TE Connectivity 284516-8 - Technical Attributes
Attributes Table
Type: Terminal Block
Style: Header
No of Poles: 8
Features & Applications

The 284516-8 is a 8 Position and 3.50 mm Spacing Vertical Mount Single Row Terminal Block Connector.

Features:

  • Product Type = Connector
  • Type of Connector = Header
  • Shrouded = Yes
  • Mount Angle = Vertical
  • Current Rating, Max. (A) = 11
  • Voltage (VAC) = 300
  • PCB Tail Length (mm [in]) = 3.40 [0.134]
  • Contact Base Material = Phosphor Bronze
  • Contact Plating, Mating Area, Material = Tin
  • Housing Color = Green
  • Centerline (mm [in]) = 3.50 [0.138]
  • Housing Material = Polyamide 6.6 GF
  • UL Flammability Rating = UL 94V-0
  • Number of Positions = 8
  • Number of Rows = Single
  • RoHS/ELV Compliance = RoHS compliant, ELV compliant





Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
12 Weeks
Minimum Order:
1200
Multiple Of:
400
tariff icon
Tariff charges may apply if shipping to the United States. An estimate of tariff charges will be calculated at checkout.
Total
$1,776.00
USD
Quantity
Unit Price
400
$1.50
800
$1.49
1,200+
$1.48
