Manufacturer Part #
NPIM42HA2R2MTRF

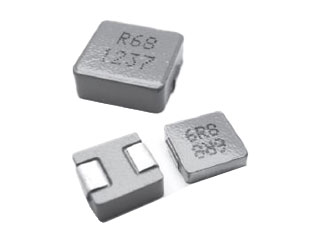

NPIM42HA Series 2.2 uH ±20 % 6.5 A 25 mOhm Surface Mount Power Inductor
| | |||||||||||
| | |||||||||||
| Mfr. Name: | NIC Components | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:3000 per Reel Mounting Method:Surface Mount | ||||||||||
| Date Code: | 2522 | ||||||||||
Product Specification Section
NIC Components NPIM42HA2R2MTRF - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=NPIM42HA2R2MTRF&field4=NIC Components&field18=https://p1na.futureelectronics.com/p/passives--inductors--power-inductors/npim42ha2r2mtrf-nic-components-6197631
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=NPIM42HA2R2MTRF&field4=NIC Components&field18=https://p1na.futureelectronics.com/p/passives--inductors--power-inductors/npim42ha2r2mtrf-nic-components-6197631
NIC Components NPIM42HA2R2MTRF - Technical Attributes
Attributes Table
| Inductance-Nom: | 2.2µH |
| Rated Current-Max: | 6.5A |
| Tolerance (%): | ±20% |
| Shielding: | Yes |
| DC Resistance: | 25mΩ |
| Core Material: | Metal Composite |
| Test Frequency: | 100kHz |
| Operating Temp Range: | -40°C to +125°C |
| No of Terminals: | 2 |
| Dimension: | L 4.3mm x W 4.2mm x H 1.9mm |
| Moisture Sensitivity Level: | 1 |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
3,000
USA:
3,000
On Order:
0
Factory Lead Time:
14 Weeks
Quantity
Unit Price
3,000+
$0.395
Product Variant Information section
Available Packaging
Package Qty:
3000 per Reel
Mounting Method:
Surface Mount
