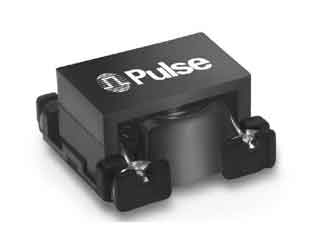

Manufacturer Part #
PD0120.113NL
Fixed Inductors SMT POWER IND
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Pulse Electronics | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:90 per Tray Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
Pulse Electronics PD0120.113NL - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=PD0120.113NL&field4=Pulse Electronics&field18=https://p1na.futureelectronics.com/p/passives--inductors--power-inductors/pd0120-113nl-pulse-electronics-4125664
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=PD0120.113NL&field4=Pulse Electronics&field18=https://p1na.futureelectronics.com/p/passives--inductors--power-inductors/pd0120-113nl-pulse-electronics-4125664
Pulse Electronics PD0120.113NL - Technical Attributes
Attributes Table
| Inductance-Nom: | 12.2µH |
| Rated Current-Max: | 7.6A |
| Tolerance (%): | ±10% |
| Shielding: | No |
| DC Resistance: | 16mΩ |
| Operating Temp Range: | -40°C to +125°C |
| Dimension: | L 16.2mm x W 15.95mm x H 8.2mm |
| Moisture Sensitivity Level: | 1 |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
7 Weeks
Quantity
Unit Price
90
$2.62
180
$2.59
270
$2.56
360
$1.67
450+
$1.65
Product Variant Information section
Available Packaging
Package Qty:
90 per Tray
Mounting Method:
Surface Mount
