Manufacturer Part #
A011-D-V-500

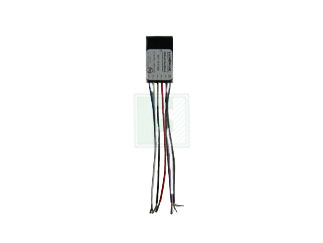

A011 Series 500 mA 48 Vdc Output Max High Output Wide Range LED Power Module
| | |||||||||||
| | |||||||||||
| Mfr. Name: | LEDdynamics | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:10 per Box | ||||||||||
| Date Code: | |||||||||||
LEDdynamics A011-D-V-500 - Product Specification
Shipping Information:
ECCN:
PCN Information:
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=A011-D-V-500&field4=LEDdynamics&field18=https://p1na.futureelectronics.com/p/semiconductors--Led-lighting-components--led-driver-modules-rev--constant-current-acdc-led-drivers/a011-d-v-500-leddynamics-5018884
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=A011-D-V-500&field4=LEDdynamics&field18=https://p1na.futureelectronics.com/p/semiconductors--Led-lighting-components--led-driver-modules-rev--constant-current-acdc-led-drivers/a011-d-v-500-leddynamics-5018884
Features & Applications
The A011-D-V-500 is a Part of A011 Series 32 V 500 mA Dimmable DC/DC High output wide Range LED Power Driver Module.
It is a line of true current regulated drivers for powering LEDs and it is ideal choice for powering all types of highbrightness and high-power LED packages and arrays. It provides high effciency and require no external current limiting resistors.
Features:
- DC input voltage upto 32 V
- 350 mA, 700 mA Constant current output
- Extremely small form factor (2.0" X 1.2" X 0.38")
- 18 AWG wires for easy elecrical connections
- External analog/digital intensity control
- External potentiometer intensity control (0%, 5-100%)
- Continous output short circuit protection
- Continous output open circuit protection
- Input reverse polarity protection with Polarifet Technology
- pulse and stroble capable (dim input)
- 0-10 V Dimming compatible with many available controls
Applications:
- Solar & Landscape Lighting
- Architectural Lighting
- Track Lighting
- Automotive & Marine Lighting
- Portable Lighting & Flashlights
- Point of Purchase Lighting
- Desk & Reading Lamps
- Signal & marker Lighting
- Flashing & Strobe Lighting
- Cabinet & Display Case Lighting
- Sign & Channel Letters
View the A011 Series of LED Driver Modules
Available Packaging
Package Qty:
10 per Box
