TSM104WIDT

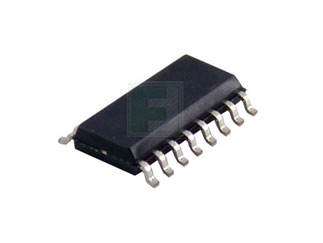

TSM104 Series 36 V 900 kHz Quad OP AMP w/ Programmable Volt Reference - SOIC-16
| | |||||||||||
| | |||||||||||
| Mfr. Name: | STMicroelectronics | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:2500 per Reel Package Style:SOIC-16 Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
STMicroelectronics TSM104WIDT - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=TSM104WIDT&field4=STMicroelectronics&field18=https://p1na.futureelectronics.com/p/semiconductors--analog--amplifiers--general-purpose/tsm104widt-stmicroelectronics-8433419
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=TSM104WIDT&field4=STMicroelectronics&field18=https://p1na.futureelectronics.com/p/semiconductors--analog--amplifiers--general-purpose/tsm104widt-stmicroelectronics-8433419
STMicroelectronics TSM104WIDT - Technical Attributes
Attributes Table
| Amplifier Type: | General Purpose |
| No of Channels: | 4 |
| Slew Rate-Nom: | 0.3V/µs |
| Input Offset Voltage-Max: | 5mV |
| Gain Bandwidth Product: | 0.9MHz |
| Average Bias Current-Max: | 150nA |
| Supply Voltage: | 1.5V to 15V |
| Common Mode Rejection Ratio: | 85dB |
| Supply Current: | 1.4mA |
| Power Supply Rejection Ratio: | 100dB |
| Operating Temp Range: | -40°C to +105°C |
| DC Voltage Gain: | 100dB |
| Low Noise: | 50nV/√Hz |
| Output Current: | 40mA |
| Moisture Sensitivity Level: | 3 |
| Package Style: | SOIC-16 |
| Mounting Method: | Surface Mount |
Features & Applications
The TSM104WIDT is a monolithic IC that includes four op-amps and an adjustable shunt voltage reference. This device is offering space and cost saving in many applications like power supply management or data acquisition systems.
Features:
- Low Supply Current : 375 mA/op.(@ VCC = 5 V)
- Low Input Bias Current : 20 nA
- Medium Speed : 0.9 MHz
- Low Input Offset Voltage : 0.5mV typ for TSM104 WA
- Wide Power Supply Range : ±1.5V to ±15V
- 2kV ESD Protection
- Voltage Reference
View the Complete family of TSM104 Amplifiers
