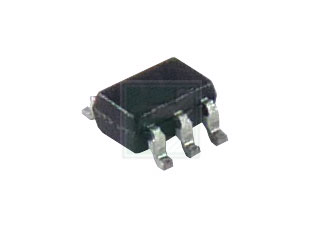

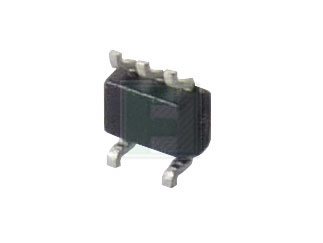

Microchip | MCP40D19T-103E/LT

The MCP40D19T-103E/LT is a part of MCP40D19 Series Digital Potentiometers. It can sustain a standard temperature ranging from -40°C to +125°C. It is available in SC-70-5 package.

The MCP40D19 devices offer a wide range of product offerings using an I2C™Compatible interface. It support a 7-bit resistor network, volatile memory configuration, and potentiometer and rheostat pinouts.

Features:

• Potentiometer or Rheostat configuration options
• 7-bit: Resistor Network Resolution
• 127 Resistors (128 Steps)
• Zero Scale to Full Scale Wiper operation
• RAB Resistances: 5 kΩ, 10 kΩ, 50 kΩ or 100 kΩ
• Low Wiper Resistance: 100Ω (typical)
• Low Tempco:
• Absolute (Rheostat): 50 ppm typical (0°C to 70°C)
• Ratiometric (Potentiometer): 15 ppm typical
• Simple I2C™Compatible Protocol with read & write commands
• Brown-out reset protection (1.5 V typical)
• Power-on Default Wiper Setting (Mid-scale)
• Low-Power Operation: 2.5 μA Static Current (typ)
• Wide Operating Voltage Range:
• 2.7 V to 5.5 V - Device Characteristics Specified
• 1.8 V to 5.5 V - Device Operation

Applications:

• PC Servers (I2C Protocol with Command Code)
• Amplifier Gain Control and Offset Adjustment
• Sensor Calibration (Pressure, Temperature,Position, Optical and Chemical)
• Set point or offset trimming
• Cost-sensitive mechanical trim pot replacement
• RF Amplifier Biasing
• LCD Brightness and Contract Adjustment
