Manufacturer Part #
MIC2043-1YM

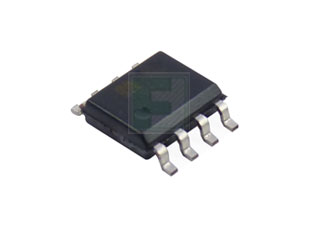

MIC2043 Series 5.5 V 60 mΩ 3 A High Side Power Distribution Switch - SOIC-8
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Microchip | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:95 per Tube Package Style:SOIC-8 Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
Microchip MIC2043-1YM - Product Specification
Shipping Information:
ECCN:
PCN Information:
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=MIC2043-1YM&field4=Microchip&field18=https://p1na.futureelectronics.com/p/semiconductors--analog--power-switches/mic2043-1ym-microchip-3025236
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=MIC2043-1YM&field4=Microchip&field18=https://p1na.futureelectronics.com/p/semiconductors--analog--power-switches/mic2043-1ym-microchip-3025236
Microchip MIC2043-1YM - Technical Attributes
| Configuration: | High Side |
| Input Voltage: | 1.6V to 5.5V |
| On-state Resistance-Max: | 60mΩ |
| Rated Current-Max: | 3A |
| Type: | Power Distribution Switch |
| Package Style: | SOIC-8 |
| Mounting Method: | Surface Mount |
Features & Applications
The MIC2043-1YM is a single channel protected power distribution switch, available in surface mount SOIC-8 package.
This device is optimized for general purpose power distribution applications which require circuit protection. The devices switch up to 5.5 V and as low as 0.8 V while offering both programmable current limiting and thermal shutdown to protect the device and the load.
Features:
- 60 mO max. on-resistance
- 0.8 V to 5.5 V operating range
- Adjustable current limit
- Power-Good detection
- Up to 3 A continuous output current
- Short-circuit protection with thermal shutdown
- Adjustable slew-rate control
- Circuit breaker mode (MIC2043)
- Fault status flag
- Undervoltage lockout
- Output MOSFET reverse current flow block when disabled
- Very fast reaction to short-circuits
- Low quiescent current
Applications:
- Docking stations
- Notebook PCs
- PDAs
- Hot swap board insertions
- RAID controllers
- USB hosts
- ACPI power distribution
View the available MIC2043 series of power switches
Available Packaging
Package Qty:
95 per Tube
Package Style:
SOIC-8
Mounting Method:
Surface Mount
