Manufacturer Part #
AP2502KTR-G1

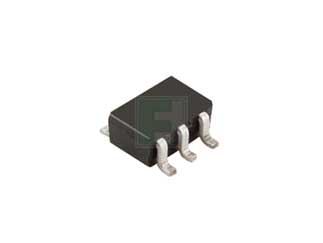

AP2502 Series 4.2 V 150 kHz 4-Ch Linear Constant Current Sink - SOT-23-6
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Diodes Incorporated | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:3000 per Reel Package Style:SOT-23-6 (SOT-26) Mounting Method:Surface Mount | ||||||||||
| Date Code: | 2423 | ||||||||||
Product Specification Section
Diodes Incorporated AP2502KTR-G1 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
Diodes Incorporated AP2502KTR-G1 - Technical Attributes
Attributes Table
| Input Voltage-Min: | 2V |
| Input Voltage-Max: | 6V |
| Output Voltage Fixed: | 4.2V |
| Dropout Voltage-Max: | 120mV |
| Output Current-Max: | 20mA |
| Tolerance (%): | ±1% |
| Operating Temp Range: | -40°C to +85°C |
| Quiescent Current: | 180µA |
| Package Style: | SOT-23-6 (SOT-26) |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
12 Weeks
Quantity
Unit Price
3,000
$0.102
6,000
$0.10
9,000
$0.0993
15,000
$0.098
30,000+
$0.0954
Product Variant Information section
Available Packaging
Package Qty:
3000 per Reel
Package Style:
SOT-23-6 (SOT-26)
Mounting Method:
Surface Mount
