Manufacturer Part #
MC7812BDTG

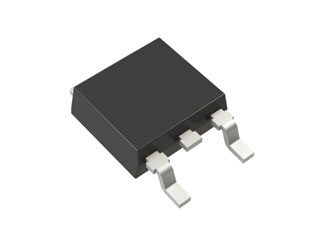

MC7812B Series 1 A 12 V Fixed Output Flange Mount LDO Voltage Reg - TO-252
| | |||||||||||
| | |||||||||||
| Mfr. Name: | onsemi | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:75 per Tube Package Style:TO-252-3 (DPAK) Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
onsemi MC7812BDTG - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=Asia&field16=en&field2=MC7812BDTG&field4=onsemi&field18=https://p1apac.futureelectronics.com/p/semiconductors--analog--regulators-reference--linear-regulators/mc7812bdtg-onsemi-5079356
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=Asia&field16=en&field2=MC7812BDTG&field4=onsemi&field18=https://p1apac.futureelectronics.com/p/semiconductors--analog--regulators-reference--linear-regulators/mc7812bdtg-onsemi-5079356
onsemi MC7812BDTG - Technical Attributes
Attributes Table
| Input Voltage-Max: | 35V |
| Output Voltage Fixed: | 12V |
| Dropout Voltage-Max: | 2V |
| Output Current-Max: | 1A |
| Tolerance (%): | ±4% |
| Operating Temp Range: | -40°C to +125°C |
| Regulator Topology: | Fixed |
| Quiescent Current: | 3.4mA |
| No. of Outputs: | Single |
| Load Regulation: | 1.6mV |
| Current - Limit: | 2.2A |
| Line Regulation: | 7.5mV |
| Package Style: | TO-252-3 (DPAK) |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
0
Singapore:
0
On Order:
0
Factory Lead Time:
8 Weeks
Quantity
Unit Price
75
$0.126
375
$0.122
1,875
$0.119
5,625
$0.117
15,000+
$0.113
Product Variant Information section
Available Packaging
Package Qty:
75 per Tube
Package Style:
TO-252-3 (DPAK)
Mounting Method:
Surface Mount
