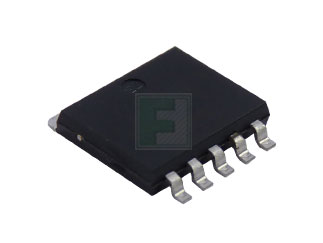

Microchip | MIC37301-2.5WR

The MIC37301-2.5WR is a 3.0 A low-dropout linear voltage regulator that provides a low-voltage, high-current output with a minimum number of external components. It offers high precision, ultra-low-dropout (500 mV over temperature), and low-ground current.

The MIC37301-2.5WR operates from an input of 2.25 V to 6.0 V. It is designed to drive digital circuits requiring low-voltage at high currents (i.e., PLDs, DSP, microcontroller, etc.). It is available in fixed and adjustable output voltages. Fixed voltages include 1.5 V, 1.8 V, 2.5 V and 3.3 V. The adjustable version is capable of 1.24 V to 5.5 V.

Features of the MIC37300/01/02 LDO include thermal and current-limit protection, and reverse-current protection. Logic enable and error flag pins are available on the 5-pin version. Junction temperature range of the MIC37300/01/02 is from –40°C to 125°C.

Key Features :

• 3.0 A minimum guaranteed output current
• 500 mV maximum dropout-voltage overtemperature
• Ideal for 3.0 V to 2.5 V conversion
• Ideal for 2.5 V to 1.8 V, 1.65 V, or 1.5 V conversion
• Stable with ceramic or tantalum capacitor
• Wide input voltage range:
• VIN: 2.25 V to 6.0 V
• +1.0% initial output tolerance
• Fixed and adjustable output voltages:
• MIC37300 3-pin fixed
• MIC37301 5-pin fixed with flag
• MIC37302 5-pin adjustable
• Excellent line and load regulation specifications
• Logic controlled shutdown
• Thermal shutdown and current-limit protection
• Reverse-leakage protection
• Low profile S-Pak package

Applications :

• LDO linear regulator for low-voltage digital IC
• PC add-in cards
• High-efficiency linear power supplies
• SMPS post regulator
• Battery charger
