Manufacturer Part #
MIC5504-3.3YM5-TR

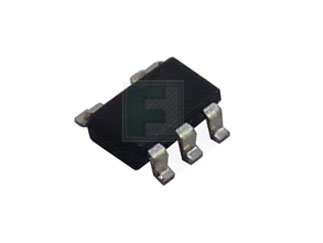

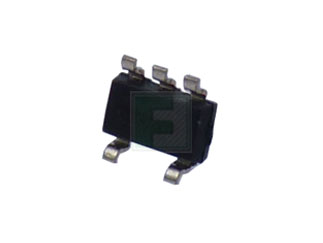

MIC5504 Series 3.3 V 300 mA Surface Mount Fixed Single Output LDO - SOT-23-5
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Microchip | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:3000 per Reel Package Style:SOT-23-5 (SOT-25) Mounting Method:Surface Mount | ||||||||||
| Date Code: | 2503 | ||||||||||
Product Specification Section
Microchip MIC5504-3.3YM5-TR - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
File
Date
Specification Change
03/29/2024 Details and Download
Microchip has released a new Datasheet for the MIC5501/2/3/4 - 300mA Single Output LDO in Small Packages of devices. Notification Status: FinalDescription of Change:? Replaced the TDFN package type with UDFN throughout the document.? Updated the package drawings within Section 7.0 ?Packaging Information?.Impacts to Data Sheet: NoneChange Implementation Status: CompleteDate Document Changes Effective: 27 Mar 2024
Part Status:
Active
Active
Microchip MIC5504-3.3YM5-TR - Technical Attributes
Attributes Table
| Input Voltage-Min: | 2.5V |
| Input Voltage-Max: | 5.5V |
| Output Voltage Fixed: | 3.3V |
| Dropout Voltage-Max: | 380mV |
| Output Current-Max: | 300mA |
| Rated Power: | 0.39W |
| Tolerance (%): | ±2% |
| Operating Temp Range: | -40°C to +125°C |
| Regulator Topology: | Fixed |
| Quiescent Current: | 38µA |
| No. of Outputs: | Single |
| Output Noise: | 175µV |
| Load Regulation: | 40mV |
| Current - Limit: | 900mA |
| Line Regulation (%): | 0.3% |
| Package Style: | SOT-23-5 (SOT-25) |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
3,000
USA:
3,000
On Order:
0
Factory Lead Time:
7 Weeks
Quantity
Unit Price
3,000
$0.126
6,000
$0.124
9,000
$0.123
15,000+
$0.121
Product Variant Information section
Available Packaging
Package Qty:
3000 per Reel
Package Style:
SOT-23-5 (SOT-25)
Mounting Method:
Surface Mount
