Manufacturer Part #
FAN53555UC04X
5 A, 2.4 MHz, Digitally Programmable TinyBuck™ Regulator
| | |||||||||||
| | |||||||||||
| Mfr. Name: | onsemi | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:3000 per Reel Package Style:WLCSP-20 Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
onsemi FAN53555UC04X - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=Asia&field16=en&field2=FAN53555UC04X&field4=onsemi&field18=https://p1apac.futureelectronics.com/p/semiconductors--analog--regulators-reference--switching-regulators/fan53555uc04x-onsemi-7127534
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=Asia&field16=en&field2=FAN53555UC04X&field4=onsemi&field18=https://p1apac.futureelectronics.com/p/semiconductors--analog--regulators-reference--switching-regulators/fan53555uc04x-onsemi-7127534
onsemi FAN53555UC04X - Technical Attributes
Attributes Table
| Topology: | Buck |
| Input Voltage: | 5.5V |
| Output Current-Max: | 5A |
| Output Voltage Range: | 1.411V to 603mV |
| Output Type: | Programmable |
| Switching Frequency-Max: | 2.4MHz |
| Operating Temp Range: | -40°C to +85°C |
| No. of Outputs: | 1 |
| Quiescent Current: | 55µA |
| Storage Temperature Range: | -65°C to +150°C |
| Load Regulation (%): | -0.1% |
| Moisture Sensitivity Level: | 1 |
| Product Status: | Active |

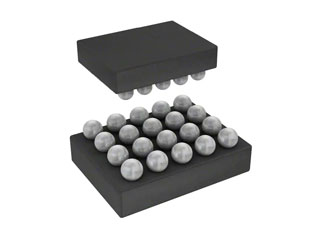

| Package Style: | WLCSP-20 |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
0
Singapore:
0
On Order:
0
Factory Lead Time:
16 Weeks
Quantity
Unit Price
3,000
$0.42
6,000
$0.415
9,000+
$0.41
Product Variant Information section
Available Packaging
Package Qty:
3000 per Reel
Package Style:
WLCSP-20
Mounting Method:
Surface Mount
