Manufacturer Part #

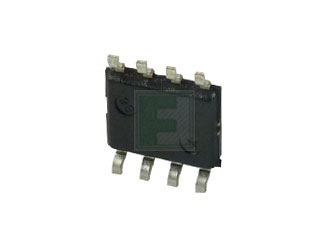

NCT75DR2G
NCT75 Series 3 to 5.5 V 2-Wire Programmable Digital Temperature Sensor - SOIC-8
| | |||||||||||
| | |||||||||||
| Mfr. Name: | onsemi | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:2500 per Reel Package Style:SOIC-8 Mounting Method:Surface Mount | ||||||||||
| Date Code: | 2529 | ||||||||||
Product Specification Section
onsemi NCT75DR2G - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=NCT75DR2G&field4=onsemi&field18=https://p1na.futureelectronics.com/p/semiconductors--analog--sensors--temperature/nct75dr2g-onsemi-9007384
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=NCT75DR2G&field4=onsemi&field18=https://p1na.futureelectronics.com/p/semiconductors--analog--sensors--temperature/nct75dr2g-onsemi-9007384
onsemi NCT75DR2G - Technical Attributes
Attributes Table
| Output Type: | Digital |
| Supply Voltage: | 3V to 5.5V |
| Operating Temp Range: | -55°C to +125°C |
| Operating Temp Range (°F): | -131°F to +257°F |
| Package Style: | SOIC-8 |
| Mounting Method: | Surface Mount |
Features & Applications
The NCT75DR2G is a two-wire serially programmable temperature sensor with an over-temperature/interrupt output pin to signal out of limit conditions, available in a SOIC-8 package.
This register allow the user to read the current temperature, change the configuration settings and adjust the temperature limits.
Features:
- 12-bit Temperature-to-Digital Converter
- Input Voltage Range from 3.0 V to 5.5 V
- Temperature Range from −55 °C to +125 °C
- SMBus/I2C Interface
- Overtemperature Indicator
- Support for SMBus/ALERT
- Shutdown Mode for Low Power Consumption
- One-shot Mode
- Available in 8-pin DFN, 8-pin Micro8 and SOIC Packages
- These Devices are Pb-Free, Halogen Free/BFR Free and are RoHS Compliant
Applications:
- Computer Thermal Monitoring
- Thermal Protection
- Isolated Sensors
- Battery Management
- Office Electronics
- Electronic Test Equipment
- Thermostat Controls
- System Thermal Management
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
20 Weeks
Quantity
Unit Price
2,500
$0.255
5,000
$0.25
12,500+
$0.245
Product Variant Information section
Available Packaging
Package Qty:
2500 per Reel
Package Style:
SOIC-8
Mounting Method:
Surface Mount
