Microchip | APTDF500U20G

Manufacturer Part #

APTDF500U20G

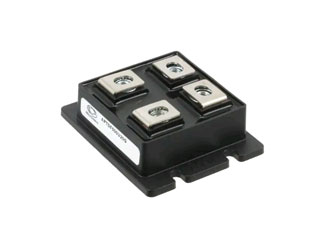

APTDF500 Series 200 V 700 A 60 ns Single Diode Power Module - LP4

ECAD Model:
Mfr. Name: Microchip
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
Microchip APTDF500U20G - Technical Attributes
Attributes Table
Average Rectified Current-Max: 700A
Peak Current-Max: 5000A
Reverse Voltage-Max [Vrrm]: 200V
Reverse Current-Max: 2.5mA
Forward Voltage: 1V
Configuration: Single
Forward RMS Current [If rms]: 1000A
Diode Capacitance-Max: 2nF
Reverse Recovery Time-Max: 60ns
Thermal Resistance: 0.11°C/W
Operating Temp Range: -40°C to +150°C
Storage Temperature Range: -40°C to +125°C
Mounting Method: Chassis Mount
