Manufacturer Part #
STTH1210DI

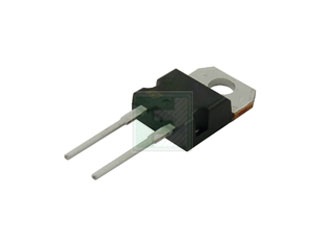

STTH1210 Series 12 A 1000 V 90 ns Ultrafast Rectifier Flange Mount - TO-220Ins
| | |||||||||||
| | |||||||||||
| Mfr. Name: | STMicroelectronics | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1000 per Tube Package Style:TO-220-2 (TO-220AC) Mounting Method:Flange Mount | ||||||||||
| Date Code: | 2530 | ||||||||||
Product Specification Section
STMicroelectronics STTH1210DI - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=STTH1210DI&field4=STMicroelectronics&field18=https://p1na.futureelectronics.com/p/semiconductors--discretes--diodes--ultrafast-rectifiers/stth1210di-stmicroelectronics-8545345
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=STTH1210DI&field4=STMicroelectronics&field18=https://p1na.futureelectronics.com/p/semiconductors--discretes--diodes--ultrafast-rectifiers/stth1210di-stmicroelectronics-8545345
STMicroelectronics STTH1210DI - Technical Attributes
Attributes Table
| Average Rectified Current-Max: | 12A |
| Reverse Voltage-Max [Vrrm]: | 1000V |
| Reverse Current-Max: | 10µA |
| Forward Voltage: | 2V |
| Reverse Recovery Time-Max: | 90ns |
| Package Style: | TO-220-2 (TO-220AC) |
| Mounting Method: | Flange Mount |
Features & Applications
The STTH1210DI is a high quality design of this diode has produced a device with low leakage current, regularly reproducible characteristics and intrinsic ruggedness. These characteristics make it ideal for heavy duty applications that demand long term reliability.
Features :
- Ultrafast, soft recovery
- Very low conduction and switching losses
- High frequency and/or high pulsed current operation
- High reverse voltage capability
- High junction temperature
- Insulated packages:
- TO-220Ins
- Electrical insulation = 2500 VRMS
- Capacitance = 7 pF
- TO-220FPAC
- Electrical insulation = 2500 VRMS
- Capacitance = 12 pF
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
15 Weeks
Quantity
Unit Price
1,000
$0.55
2,000
$0.54
3,000+
$0.535
Product Variant Information section
Available Packaging
Package Qty:
1000 per Tube
Package Style:
TO-220-2 (TO-220AC)
Mounting Method:
Flange Mount
