Manufacturer Part #
BD241C

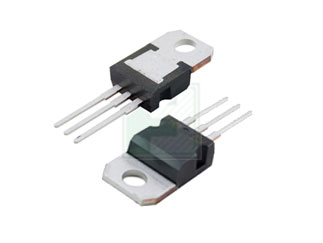

BD241C Series NPN 100 V 3 A Flange Mount Silicon Power Transistor - TO-220
| | |||||||||||
| | |||||||||||
| Mfr. Name: | STMicroelectronics | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:50 per Tube Package Style:TO-220-3 (TO-220AB) Mounting Method:Through Hole | ||||||||||
| Date Code: | 2513 | ||||||||||
Product Specification Section
STMicroelectronics BD241C - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=BD241C&field4=STMicroelectronics&field18=https://p1na.futureelectronics.com/p/semiconductors--discretes--transistors--bipolar-transistors/bd241c-stmicroelectronics-8456451
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=BD241C&field4=STMicroelectronics&field18=https://p1na.futureelectronics.com/p/semiconductors--discretes--transistors--bipolar-transistors/bd241c-stmicroelectronics-8456451
STMicroelectronics BD241C - Technical Attributes
Attributes Table
| Polarity: | NPN |
| Type: | Power Transistor |
| CE Voltage-Max: | 100V |
| Collector Current Max: | 3A |
| Power Dissipation-Tot: | 40W |
| Collector - Emitter Saturation Voltage: | 1.2V |
| Emitter - Base Voltage: | 5V |
| DC Current Gain-Min: | 10 |
| Collector - Current Cutoff: | 0.3mA |
| Configuration: | Single |
| Package Style: | TO-220-3 (TO-220AB) |
| Mounting Method: | Through Hole |
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
14 Weeks
Quantity
Unit Price
50
$0.21
200
$0.205
1,000
$0.198
2,000
$0.195
6,250+
$0.189
Product Variant Information section
Available Packaging
Package Qty:
50 per Tube
Package Style:
TO-220-3 (TO-220AB)
Mounting Method:
Through Hole
