Manufacturer Part #
BFU530AVL

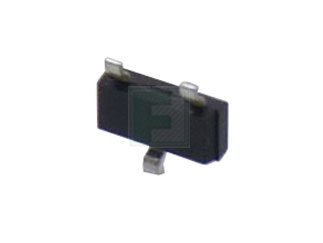

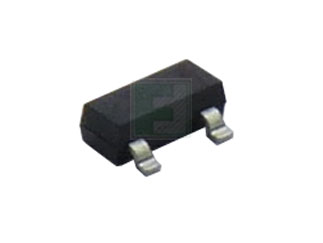

BFU530 Series 12 V 40 mA NPN Surface Mount Wideband RF Transistor - SOT-23
| | |||||||||||
| | |||||||||||
| Mfr. Name: | NXP | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:10000 per Reel Package Style:SOT-23 (SC-59,TO-236) Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
NXP BFU530AVL - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Obsolete
Obsolete
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=Asia&field16=en&field2=BFU530AVL&field4=NXP&field18=https://p1apac.futureelectronics.com/p/semiconductors--discretes--transistors--bipolar-transistors/bfu530avl-nxp-4194912
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=Asia&field16=en&field2=BFU530AVL&field4=NXP&field18=https://p1apac.futureelectronics.com/p/semiconductors--discretes--transistors--bipolar-transistors/bfu530avl-nxp-4194912
NXP BFU530AVL - Technical Attributes
Attributes Table
| Product Status: | Last Time Buy |
| Polarity: | NPN |
| Type: | RF |
| CE Voltage-Max: | 12V |
| Collector Current Max: | 40mA |
| Power Dissipation-Tot: | 0.45W |
| Collector - Base Voltage: | 24V |
| Emitter - Base Voltage: | 2V |
| DC Current Gain-Min: | 60 |
| Collector - Current Cutoff: | 1nA |
| Configuration: | Single |
| Frequency - Transition: | 11GHz |
| Operating Temp Range: | -40°C to +150°C |
| Noise Figure: | 1.1dB |
| Input Capacitance: | 0.83pF |
| Moisture Sensitivity Level: | 1 |
| Package Style: | SOT-23 (SC-59,TO-236) |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
0
Singapore:
0
On Order:
0
Factory Lead Time:
N/A
Quantity
Unit Price
10,000
$0.118
20,000
$0.116
30,000+
$0.115
Product Variant Information section
Available Packaging
Package Qty:
10000 per Reel
Package Style:
SOT-23 (SC-59,TO-236)
Mounting Method:
Surface Mount
