Manufacturer Part #
TIP42A

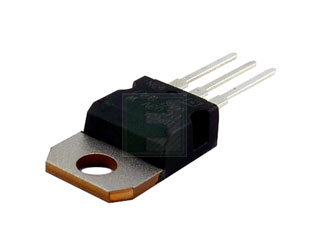

TIP42C Series PNP 100 V 6 A Complementary Power Transistor - TO-220
| | |||||||||||
| | |||||||||||
| Mfr. Name: | STMicroelectronics | ||||||||||
| Standard Pkg: | Product Variant Information section Available Packaging
Package Qty:50 per Tube Package Style:TO-220-3 (TO-220AB) Mounting Method:Through Hole | ||||||||||
| Date Code: | 2010 | ||||||||||
Product Specification Section
STMicroelectronics TIP42A - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
STMicroelectronics TIP42A - Technical Attributes
Attributes Table
| Polarity: | PNP |
| Type: | Power Transistor |
| CE Voltage-Max: | 100V |
| Collector Current Max: | 6A |
| Power Dissipation-Tot: | 65W |
| DC Current Gain-Min: | 15 |
| Package Style: | TO-220-3 (TO-220AB) |
| Mounting Method: | Through Hole |
Features & Applications
The TIP42A is a base island technology PNP power transistor in TO-220 plastic package that make this device suitable for audio, power linear and switching applications.
Features:
- Complementary PNP-NPN devices
- New enhanced series
- High switching speed
- hFE grouping
- hFE improved linearity
Applications:
- General purpose circuits
- Audio amplifier
- Power linear and switching
Pricing Section
Global Stock:
4,350
Germany (Online Only):
4,350
On Order:
0
Quantity
Web Price
50
$0.665
250
$0.63
1,250
$0.605
3,750
$0.585
10,000+
$0.55
Product Variant Information section
Available Packaging
- TubeSelected Variant Qty: 50+ / Web Price: $0.665 / Stock: 4,350 Qty: 50+$0.665 Stock: 4,350
- Tube Qty: 4,000+ / Web Price: $0.655 / Stock: 0 Qty: 50+$0.655 Stock: 0
- Tube Qty: 4,900+ / Web Price: $0.665 / Stock: 0 Qty: 50+$0.665 Stock: 0
- Tube Qty: 4,000+ / Web Price: $0.655 / Stock: 0 Qty: 50+$0.655 Stock: 0
Package Qty:
50 per Tube
Package Style:
TO-220-3 (TO-220AB)
Mounting Method:
Through Hole
