Manufacturer Part #
IGB10N60TATMA1

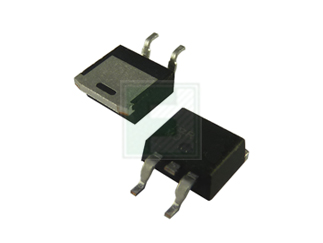

IGB10N60T Series 600 V 20 A 110 W Surface Mount Low Loss IGBT - TO-263-3
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Infineon | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1000 per Reel Package Style:TO-263-3 (D2PAK) Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
Infineon IGB10N60TATMA1 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
Infineon IGB10N60TATMA1 - Technical Attributes
Attributes Table
| CE Voltage-Max: | 600V |
| Collector Current @ 25C: | 24A |
| Power Dissipation-Tot: | 110W |
| Gate - Emitter Voltage: | 20V |
| Pulsed Collector Current: | 30A |
| Collector - Emitter Saturation Voltage: | 1.5V |
| Turn-on Delay Time: | 12ns |
| Turn-off Delay Time: | 215ns |
| Qg Gate Charge: | 62nC |
| Leakage Current: | 100nA |
| Input Capacitance: | 551pF |
| Operating Temp Range: | -40°C to +175°C |
| No of Terminals: | 3 |
| Package Style: | TO-263-3 (D2PAK) |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
19 Weeks
Quantity
Unit Price
1,000
$0.50
2,000
$0.49
4,000
$0.485
5,000+
$0.475
Product Variant Information section
Available Packaging
Package Qty:
1000 per Reel
Package Style:
TO-263-3 (D2PAK)
Mounting Method:
Surface Mount
