Manufacturer Part #
IGP20N60H3XKSA1

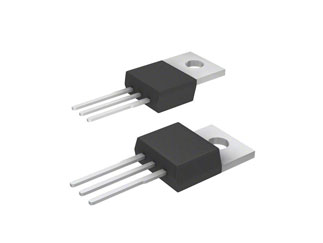

600 V 1.95 V Single Through Hole TO-220-3 IGBT
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Infineon | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:500 per Tube Package Style:TO-220-3 (TO-220AB) Mounting Method:Through Hole | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
Infineon IGP20N60H3XKSA1 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
Part Status:
Obsolete
Obsolete
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=IGP20N60H3XKSA1&field4=Infineon&field18=https://p1na.futureelectronics.com/p/semiconductors--discretes--transistors--igbts/igp20n60h3xksa1-infineon-6199453
Infineon IGP20N60H3XKSA1 - Technical Attributes
Attributes Table
| CE Voltage-Max: | 600V |
| Collector Current @ 25C: | 40A |
| Power Dissipation-Tot: | 170W |
| Gate - Emitter Voltage: | 20V |
| Pulsed Collector Current: | 80A |
| Collector - Emitter Saturation Voltage: | 1.95V |
| Turn-on Delay Time: | 16ns |
| Turn-off Delay Time: | 194ns |
| Qg Gate Charge: | 120nC |
| Leakage Current: | 100nA |
| Input Capacitance: | 1100pF |
| Operating Temp Range: | -40°C to +175°C |
| No of Terminals: | 3 |
| Package Style: | TO-220-3 (TO-220AB) |
| Mounting Method: | Through Hole |
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
19 Weeks
Quantity
Unit Price
500
$0.815
1,500
$0.795
2,000
$0.79
5,000
$0.78
7,500+
$0.765
Product Variant Information section
Available Packaging
Package Qty:
500 per Tube
Package Style:
TO-220-3 (TO-220AB)
Mounting Method:
Through Hole
