Manufacturer Part #

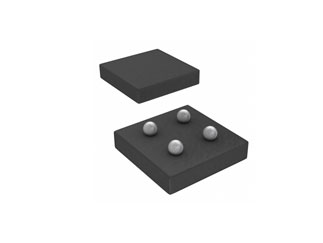

DMN2023UCB4-7
N-Channel 24 V 26 mΩ 29 nC SMT Enhancement Mode Mosfet - X1-WLB1818-4
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Diodes Incorporated | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:3000 per Reel Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
Diodes Incorporated DMN2023UCB4-7 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=Asia&field16=en&field2=DMN2023UCB4-7&field4=Diodes Incorporated&field18=https://p1apac.futureelectronics.com/p/semiconductors--discretes--transistors--mosfets/dmn2023ucb4-7-diodes-incorporated-6053998
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=Asia&field16=en&field2=DMN2023UCB4-7&field4=Diodes Incorporated&field18=https://p1apac.futureelectronics.com/p/semiconductors--discretes--transistors--mosfets/dmn2023ucb4-7-diodes-incorporated-6053998
Diodes Incorporated DMN2023UCB4-7 - Technical Attributes
Attributes Table
| Fet Type: | Dual N-Ch |
| No of Channels: | 2 |
| Rated Power Dissipation: | 1.45W |
| Qg Gate Charge: | 29nC |
| Gate-Source Voltage-Max [Vgss]: | 12V |
| Turn-on Delay Time: | 10ns |
| Turn-off Delay Time: | 75ns |
| Rise Time: | 20ns |
| Fall Time: | 29ns |
| Operating Temp Range: | -55°C to +150°C |
| Gate Source Threshold: | 1.3V |
| Input Capacitance: | 2564pF |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
0
Singapore:
0
Factory Lead Time:
24 Weeks
Quantity
Unit Price
3,000
$0.184
6,000
$0.181
9,000
$0.18
12,000
$0.179
15,000+
$0.176
Product Variant Information section
Available Packaging
Package Qty:
3000 per Reel
Mounting Method:
Surface Mount
