Manufacturer Part #

LEDHCNA0024V41FLO

347 - 480Vac, 100W, 100 - 4160mA, 3.5-24V, IP66 LED Driver

ECAD Model:
Mfr. Name: Signify North America
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
Technical Attributes
Attributes Table
Nominal Input Voltage: 347VAC to 480VAC
Max Output Power: 100W
Minimum Output Voltage: 3.5V
Maximum Output Voltage: 24V
Minimum Output Current: 100mA
Maximum Output Current: 4160mA
Input Power Factor: 0.9
Efficiency: 85.5%
Number of Output Channels: 1
Certifications: CSA,cUL,UL
Driver Class: Class 2
IP Rating: IP66 - Outdoor Lighting Rating
Dimming Control: Excludes Dimming
Is Dim to Off: False
Features & Applications

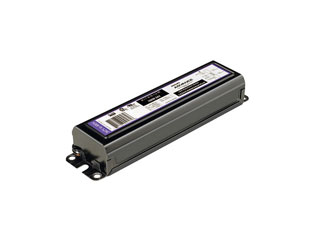

The LEDHCNA0024V41FLO is a Xitanium 100 W 4.1 A 24 V UL Class II Outdoor LED Driver Module.

Xitanium drivers for 12 vdc and 24 vdc LED systems deliver solid performance, high reliability and full compatibility with a variety of 12 and 24 volt LED lighting systems, including the latest in Luxeon technology.

It is Ideal for channel letter, architectural, contour, edge or orientation/step lighting applications, Xitanium drivers for 12 vdc and 24 vdc LED systems feature a compact, leaded design, are rated for 50,000+ hours of life and carry a full five-year warranty.

Product Specifications:

  • Output power (W) : 100
  • Output voltage : 2.5 to 24 V
  • Output current : 4.1 A
  • Tcase Max : 85°C
  • Input voltage : 247 to 480 V
  • Input frequency : 50/60 Hz
  • Input current : 0.32 A @ 347 V and 0.23 A @ 480 V
  • Inrush current (Apk/µs) : 85/115
  • Max THD : 20 %
  • Min power factor : 0.90
  • Surge protection (KV) 3.0
  • Weight (Lbs) : 2.84/1270
  • Envir. Protection Rating : UL Dry & Damp

View the LEDHCNA Series of LED Driver Modules

Pricing Section
Global Stock:
0
USA:
0
609
Factory Stock:Factory Stock:
0
Factory Lead Time:
12 Weeks
Minimum Order:
1
Multiple Of:
1
Total
$65.96
USD
Quantity
Web Price
1
$65.96
4
$60.95
15
$56.52
25
$54.90
50+
$52.77
