Manufacturer Part #
HEF4021BT-Q100J
HEF4021B-Q100 is an 8-bit static shift register (parallel-to-serial converter)
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Nexperia | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:2500 per Reel Package Style:SOIC-16 Mounting Method:Surface Mount | ||||||||||
| Date Code: | 2519 | ||||||||||
Product Specification Section
Nexperia HEF4021BT-Q100J - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=Asia&field16=en&field2=HEF4021BT-Q100J&field4=Nexperia&field18=https://p1apac.futureelectronics.com/p/semiconductors--logic--4000-series/hef4021bt-q100j-nexperia-7175456
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=Asia&field16=en&field2=HEF4021BT-Q100J&field4=Nexperia&field18=https://p1apac.futureelectronics.com/p/semiconductors--logic--4000-series/hef4021bt-q100j-nexperia-7175456
Nexperia HEF4021BT-Q100J - Technical Attributes
Attributes Table
| Logic Circuit: | Register |
| Family: | HEF4000 |
| No of Functions / Channels: | 1 |
| Supply Voltage-Nom: | 3V to 15V |
| Supply Current: | 20µA |
| Power Dissipation: | 0.5W |
| Propagation Delay: | 40ns |
| Operating Temperature: | -40°C to +125°C |
| Capacitance: | 7.5pF |
| No of Inputs: | 9 |
| No of Outputs: | Triple |
| High Level Output Current: | -3.4mA |
| Low Level Output Current: | 3.4mA |
| No of Pins: | 16 |
| Moisture Sensitivity Level: | 1 |

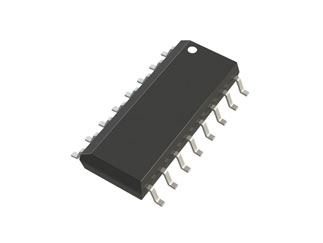

| Package Style: | SOIC-16 |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
7,500
Singapore:
7,500
Factory Lead Time:
N/A
Quantity
Unit Price
2,500
$0.43
5,000
$0.425
7,500+
$0.42
Product Variant Information section
Available Packaging
Package Qty:
2500 per Reel
Package Style:
SOIC-16
Mounting Method:
Surface Mount
