Manufacturer Part #

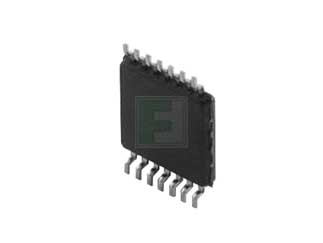

MC74LCX14DTR2G
74LCX Series 2.3 to 3.6 V CMOS Hex Schmitt Inverter - TSSOP-14
| | |||||||||||
| | |||||||||||
| Mfr. Name: | onsemi | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:2500 per Reel Package Style:TSSOP-14 Mounting Method:Surface Mount | ||||||||||
| Date Code: | 2525 | ||||||||||
Product Specification Section
onsemi MC74LCX14DTR2G - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=MC74LCX14DTR2G&field4=onsemi&field18=https://p1na.futureelectronics.com/p/semiconductors--logic--74-series--vcx-lcx/mc74lcx14dtr2g-onsemi-8989378
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=MC74LCX14DTR2G&field4=onsemi&field18=https://p1na.futureelectronics.com/p/semiconductors--logic--74-series--vcx-lcx/mc74lcx14dtr2g-onsemi-8989378
onsemi MC74LCX14DTR2G - Technical Attributes
Attributes Table
| Family: | VCX/LCX |
| No of Functions / Channels: | 6 |
| Output Characteristics: | 3-ST |
| Supply Voltage-Nom: | 2V to 3.6V |
| Supply Current: | ±100mA |
| Propagation Delay: | 7.8ns |
| Operating Temperature: | -40°C to +85°C |
| Capacitance: | 25pF |
| No of Inputs: | 6 |
| High Level Output Current: | -24mA |
| Low Level Output Current: | 24mA |
| No of Pins: | 14 |
| Quiescent Current: | 10µA |
| Moisture Sensitivity Level: | 1 |
| Package Style: | TSSOP-14 |
| Mounting Method: | Surface Mount |
Features & Applications
The MC74LCX14DTR2G is a high performance hex inverter with Schmitt−Trigger inputs, operating from a 2.3 to 3.6 V supply, available in a TSSOP-14 package.
Features:
- Designed for 2.3 V to 3.6 V VCC Operation
- 5.0 V Tolerant Inputs − Interface Capability with 5.0 V TTL Logic
- LVTTL Compatible
- LVCMOS Compatible
- 24 mA Balanced Output Sink and Source Capability
- Near Zero Static Supply Current (10 µA) Substantially Reduces System Power Requirements
- Latchup Performance Exceeds 500 mA
- Current Drive Capability is 24 mA at Source/Sink
- Pin and Function Compatible with Other Standard Logic Families
- ESD Performance: Human Body Model >2000 V; Machine Model >100 V
- Chip Complexity: 41 Equivalent Gates
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Pricing Section
Global Stock:
5,000
USA:
5,000
On Order:
0
Factory Lead Time:
17 Weeks
Quantity
Unit Price
2,500
$0.15
5,000
$0.148
7,500
$0.147
12,500+
$0.144
Product Variant Information section
Available Packaging
Package Qty:
2500 per Reel
Package Style:
TSSOP-14
Mounting Method:
Surface Mount
