Manufacturer Part #
NC7NZ17L8X

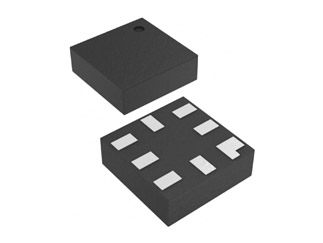

NC7NZ Series 5.5 V 1 uA Surface Mount Push Pull Buffer - MICROPAK-8
| | |||||||||||
| | |||||||||||
| Mfr. Name: | onsemi | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:5000 per Reel Package Style:MICROPAK-8 Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
onsemi NC7NZ17L8X - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=Asia&field16=en&field2=NC7NZ17L8X&field4=onsemi&field18=https://p1apac.futureelectronics.com/p/semiconductors--logic--gates--triple-gate/nc7nz17l8x-onsemi-5359740
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=Asia&field16=en&field2=NC7NZ17L8X&field4=onsemi&field18=https://p1apac.futureelectronics.com/p/semiconductors--logic--gates--triple-gate/nc7nz17l8x-onsemi-5359740
onsemi NC7NZ17L8X - Technical Attributes
Attributes Table
| Logic Circuit: | Buffer |
| No of Functions / Channels: | 3 |
| Output Characteristics: | Push-Pull |
| Supply Voltage-Nom: | 1.65V to 5.5V |
| Supply Current: | 1µA |
| Power Dissipation: | 250mW |
| Propagation Delay: | 6.6ns |
| Operating Temperature: | -40°C to +85°C |
| Capacitance: | 2.5pF |
| No of Inputs: | 3 |
| High Level Output Current: | -32mA |
| Low Level Output Current: | 32mA |
| No of Pins: | 8 |
| Quiescent Current: | 1µA |
| Moisture Sensitivity Level: | 1 |
| Package Style: | MICROPAK-8 |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
0
Singapore:
0
On Order:
0
Factory Lead Time:
12 Weeks
Quantity
Unit Price
5,000
$0.0731
10,000
$0.0719
15,000
$0.0712
20,000
$0.0707
25,000+
$0.0691
Product Variant Information section
Available Packaging
Package Qty:
5000 per Reel
Package Style:
MICROPAK-8
Mounting Method:
Surface Mount
