Microchip | SY100EPT23LKG

Manufacturer Part #

SY100EPT23LKG

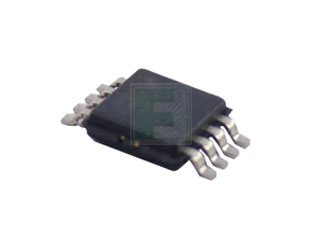

SY100EPT23L Series 3.3 V Dual Differential LVPECL-to-LVTTL Translator - MSOP-8

ECAD Model:
Mfr. Name: Microchip
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
Microchip SY100EPT23LKG - Technical Attributes
Attributes Table
No of Channels: 2
Input Type: LVPECL
Output Type: LVTTL
Operating Frequency-Max: 275MHz
Supply Voltage: 3V to 3.6V
Package Style:  MSOP-8
Mounting Method: Surface Mount
Features & Applications

The SY100EPT23L is a dual differential LVPECL-to-LVTTL translator.Its Operating temperature ranges from -40 °C to 85 °C and its available in MSOP-8 package.

The tiny 8-pin MSOP package and dual gate design of the EPT23L makes it ideal for applications which require the translation of a clock and data signal.

Features:

  • 3.3V power supply
  • 1.9ns typical propagation delay
  • Maximum frequency > 275MHz
  • Differential LVPECL inputs
  • 24mA LVTTL outputs
  • Flow-through pinouts
  • Internal input resistors: pulldown on D, pulldown and pullup on /D
  • Q output will default LOW with inputs open or at Ground
  • Available in 8-pin MSOP and SOIC packages

View the SY100EP Series of dual Differential Translator

Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
100
Factory Lead Time:
4 Weeks
Minimum Order:
500
Multiple Of:
100
Total
$860.00
USD
Quantity
Unit Price
100
$1.75
300
$1.73
500
$1.72
1,000
$1.70
2,000+
$1.68
