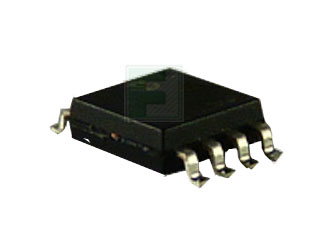

Image for illustration purposes only,
refer to technical specifications

Manufacturer Part #

24LC512-I/SM

24LC512 Series 512 Kb I2C 2 Wire (64K X 8) 2.5 V Serial EEPROM SMT - SOIJ-8

24LC512-I/SM Datasheet
ECAD Model: Convert this file for your ECAD tool by downloading the free Library Loader. Learn more about ECAD model.
Mfr. Name:	Microchip
Standard Pkg:	Product Variant Information section Available Packaging Package Qty: 90 per Tube Package Style: SOIJ-8 Mounting Method: Surface Mount
Date Code:	2410

Microchip 24LC512-I/SM - Technical Attributes

Memory Density:	512kb
Memory Organization:	64 K x 8
Supply Voltage-Nom:	2.5V to 5.5V
Clock Frequency-Max:	400kHz
Write Cycle Time-Max (tWC):	5ms
Package Style:	SOIJ-8
Mounting Method:	Surface Mount

Features & Applications

The 24LC512 (24XX512*) series of 64 K x 8 (512 Kbit) Serial Electrically Erasable PROM, capable of operation across a broad voltage range (1.7 V to 5.5 V). It has been developed for advanced, low-power applications such as personal communications and data acquisition.

This device also has a page write capability of up to 128 bytes of data. This device is capable of both random and sequential reads up to the 512K boundary. Functional address lines allow up to eight devices on the same bus, for up to 4 Mbit address space. This device is available in the standard 8-pin plastic DIP, SOIJ and DFN packages.

Features:

Single Supply with Operation Down to 2.5 V for 24LC512 Devices
Low-Power CMOS Technology: - Active current 400 uA, typical - Standby current 100 nA, typical
2-Wire Serial Interface, I2C™ Compatible
Cascadable for up to Eight Devices
Schmitt Trigger Inputs for Noise Suppression
Output Slope Control to Eliminate Ground Bounce
100 kHz and 400 kHz Clock Compatibility
Page Write Time 5 ms max.
Self-Timed Erase/Write Cycle
