Manufacturer Part #
ATSAMA5D35A-CUR

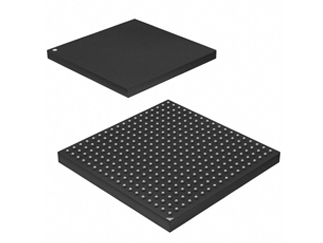

SAMA5D3 Series 160 kB Flash 128 kB SRAM 536 MHz 32-Bit Microcontroller - BGA-324
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Microchip | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:500 per Reel Package Style:LFBGA-324 Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
Microchip ATSAMA5D35A-CUR - Product Specification
Shipping Information:
ECCN:
PCN Information:
***FPCN104919 Update ***Revision History:April 16, 2024: Issued final notification.May 08, 2024: Re-issued final notification. Updated pre and post change summary table to include package type and package width.Description of Change:Implement new carrier tape leader and trailer length for various packages shipped from MPHL site.Reason for Change:To improve manufacturability by standardizing the carrier tape and trailer length for various packages shipped from MPHL site.
PCN Status:Final NotificationDescription of Change:Qualification of ASEK as an additional assembly site for selected ATSAMA5D3xx device family available in 324L LFBGA (15x15x1.4mm) package.Reason for Change:To improve manufacturability by qualifying ASEK as an additional assembly site.Change Implementation Status:In ProgressEstimated First Ship Date:August 21, 2023 (date code: 2334)
Description of Change:Qualification of ASEK as an additional assembly site for selected ATSAMA5D3xx device family available in 324L LFBGA (15x15x1.4mm) package.Reason for Change:To improve manufacturability by qualifying ASEK as an additional assembly siteChange Implementation Status:In ProgressEstimated Qualification Completion Date:April 2023
Description of Change:Qualification of MPHL as additional final test site for selected ATSAMA5D3xA device families available in 324L LFBGA (15x15x1.4mm) package.Reason for Change:To improve manufacturability by qualifying MPHL as additional final test site. Estimated First Ship Date:November 23, 2021 (date code: 2148)
PCN Status: Initial notification PCN Type: Manufacturing ChangeDescription of Change:Qualification of MPHL as additional final test site for selected ATSAMA5D3xA device families available in 324L LFBGA (15x15x1.4mm) package.Impacts to Data Sheet: NoneChange Impact:NoneReason for Change: To improve manufacturability by qualifying MPHL as additional final test site.Change Implementation Status:In ProgressEstimated Qualification Completion Date:October 2021
Part Status:
Microchip ATSAMA5D35A-CUR - Technical Attributes
| Family Name: | SAMA5 |
| Core Processor: | ARM Cortex A5 |
| Program Memory Type: | Flash |
| Flash Size (Bytes): | 128kB |
| Speed: | 536MHz |
| Supply Voltage: | 1.2V to 3.3V |
| Operating Temperature: | -40°C to +85°C |
| Package Style: | LFBGA-324 |
| Mounting Method: | Surface Mount |
Available Packaging
Package Qty:
500 per Reel
Package Style:
LFBGA-324
Mounting Method:
Surface Mount
