Manufacturer Part #

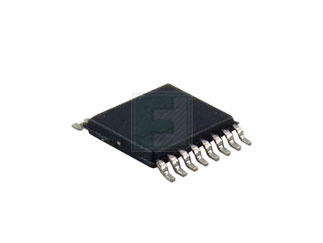

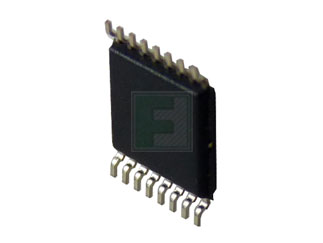

LPC811M001JDH16FP
LPC81xM Series 8 kB Flash 2 kB RAM 30 MHz 32-Bit Microcontroller - TSSOP-16
| | |||||||||||
| | |||||||||||
| Mfr. Name: | NXP | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:96 per Tube Package Style:TSSOP-16 Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
NXP LPC811M001JDH16FP - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
3A991.a.2
This item may be subject to export licensing controls.
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=LPC811M001JDH16FP&field4=NXP&field18=https://p1na.futureelectronics.com/p/semiconductors--microcontrollers--32-bit/lpc811m001jdh16fp-nxp-9039560
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=LPC811M001JDH16FP&field4=NXP&field18=https://p1na.futureelectronics.com/p/semiconductors--microcontrollers--32-bit/lpc811m001jdh16fp-nxp-9039560
NXP LPC811M001JDH16FP - Technical Attributes
Attributes Table
| Family Name: | LPC81xM |
| Core Processor: | ARM Cortex M0 |
| Program Memory Type: | Flash |
| Flash Size (Bytes): | 8kB |
| RAM Size: | 2kB |
| Speed: | 30MHz |
| No of I/O Lines: | 14 |
| InterfaceType / Connectivity: | I2C/SPI/UART/USART |
| Peripherals: | Brown-out Detect/POR/PWM/Reset/Watchdog |
| Number Of Timers: | 3 |
| Supply Voltage: | 1.8V to 3.6V |
| Operating Temperature: | -40°C to +105°C |
| Watchdog Timers: | 1 |
| Package Style: | TSSOP-16 |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
16 Weeks
Quantity
Unit Price
96+
$0.665
Product Variant Information section
Available Packaging
Package Qty:
96 per Tube
Package Style:
TSSOP-16
Mounting Method:
Surface Mount
