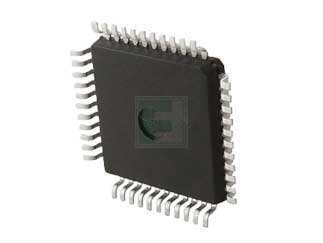

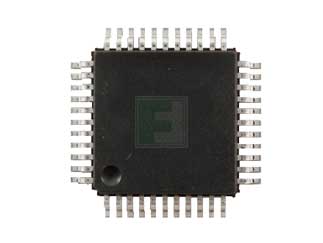

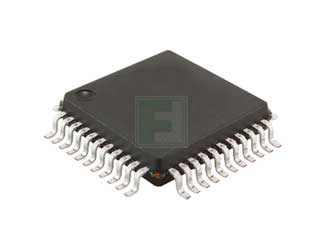

NXP | MC908AP64CFBE

The HC08AP Family is a member of the low-cost, high-performance M68HC08 Family of 8-bit microcontrollers units (MCUs).

All MCUs in this family use the enhanced M68HC08 central processor unit (CPU08) and are available with a variety of modules, memory sizes and types, and package types.HC08APxA are the high speed oscillator version of HC08APx device.

Features:

• Fully upward-compatible object code with M6805, M146805 and M68HC05 families
• Maximum internal bus frequency:
  • 8-MHz at 5 V operating voltage
  • 4-MHz at 3 V operating voltage
• Oscillator Options:
  • 32-kHz crystal oscillator clock input
  • 32 MHz internal phase-lock loop
  • RC Oscillator
• Optional continuous crystal oscillator operation in stop mode
• Up to 32 Kbytes user program FLASH memory with security feature
• Up to 2 Kbytes of on-chip RAM
• Up to 32 general-purpose input/output (I/O) ports:
  • 8 keyboard interrupt with internal pull-up
  • 8 pins with direct LED drive
  • 6 pins with 25 mA current sink
• Two 16-bit, 2-channel timer interface modules
• Timebase module
• Serial Communications Interface Module (SCI)
• Infrared Serial Communications Interface Module (IRSCI)
• Serial Peripheral Interface Module (SPI)
• Multi-Master I²C Interface (MMI²C)
• 8-channel, 10-bit ADC
• Low power design (fully static with stop and wait modes)
