Manufacturer Part #

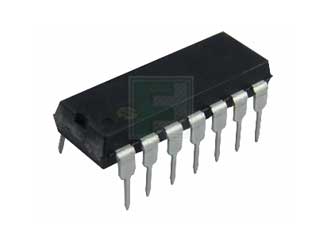

PIC16F15224-I/P
8BIT 7KB FLASH 14DIP 512B RAM, 10b ADC, 2x PWM, 2x CCP, HLT, WDT, PPS, EUSART, S
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Microchip | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:30 per Tube Package Style:DIP-14 Mounting Method:Through Hole | ||||||||||
| Date Code: | |||||||||||
Microchip PIC16F15224-I/P - Product Specification
Shipping Information:
ECCN:
PCN Information:
Microchip has released a new Errata for the PIC16F15213/14/23/24/43/44 Silicon Errata and Data Sheet Clarifications of devices.Description of Change: Added silicon revision A8.Reason for Change: To Improve ProductivityDate Document Changes Effective: 28 Sep 2022NOTE: Please be advised that this is a change to the document only the product has not been changed.
Microchip has released a new Errata for the PIC16F15213/14/23/24/43/44 Silicon Errata and Data Sheet Clarifications of devices.Description of Change: Added silicon errata item 1.7.1.Reason for Change: To Improve Productivity Date Document Changes Effective: 05 Sep 2022NOTE: Please be advised that this is a change to the document only the product has not been changed.
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=PIC16F15224-I/P&field4=Microchip&field18=https://p1na.futureelectronics.com/p/semiconductors--microcontrollers--8-bit/pic16f15224-i-p-microchip-6135270
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=PIC16F15224-I/P&field4=Microchip&field18=https://p1na.futureelectronics.com/p/semiconductors--microcontrollers--8-bit/pic16f15224-i-p-microchip-6135270
Microchip PIC16F15224-I/P - Technical Attributes
| Family Name: | PIC16F |
| Core Processor: | PIC |
| Program Memory Type: | Flash |
| Flash Size (Bytes): | 7kB |
| RAM Size: | 512B |
| Speed: | 32MHz |
| No of I/O Lines: | 11 |
| InterfaceType / Connectivity: | I2C/LINbus/SPI/UART/USART |
| Peripherals: | Brown-out Detect/PDR/PWM/Reset/Watchdog |
| Supply Voltage: | 1.8V to 5.5V |
| Operating Temperature: | -40°C to +85°C |
| On-Chip ADC: | 11-chx10-bit |
| Package Style: | DIP-14 |
| Mounting Method: | Through Hole |
Available Packaging
Package Qty:
30 per Tube
Package Style:
DIP-14
Mounting Method:
Through Hole
