Manufacturer Part #

553-0232F

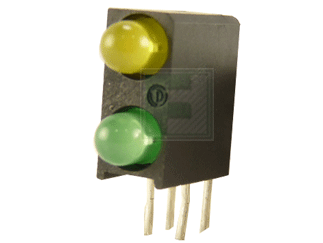

553 Series Yellow Green 3 mm 60º 5/1.6 mcd Tinted LED Circuit Board Inductor

ECAD Model:
Mfr. Name: Dialight
Standard Pkg:
Product Variant Information section
Date Code: 2219
Product Specification Section
Dialight 553-0232F - Technical Attributes
Attributes Table
No of LEDs: 2
Color: Yellow / Green
Lens Type: Tinted / Diffused
Forward Voltage: 1.8V/1.9V
Intensity: 5mcd/1.6mcd
Viewing Angle: 60°
Wavelength: 591nm/565nm
Rated Power: 75*20mW
Operating Temp Range: -40°C to +100°C
Storage Temperature Range: -55°C to +100°C
Dimension (Inch): H  0.38in x L  0.433in x W  0.17in
Mounting Method: Through Hole
$Features & Applications

The 553-0232F is a 3 mm diameter BI-level housing right angle (green/yellow) color LED circuit board indicator with tinted diffused lens.

Features:

  • Multiple CBIs form horizontal LED arrays on 5.08mm (0.200”) center-lines.
  • High Contrast, UL 94 V-0 rated, black housing
  • Oxygen index: 32%
  • Polymer content: PBT, 0.405 g
  • Housing stand-offs facilitate PCB cleaning
  • Solderability per MIL-STD-202F, method 208F
  • LEDs are safe for direct viewing per IEC 825-1, EN-60825-1
  • Compatible with:
    • 553-xxxx-306 Bi-Level Array

Applications:

  • Industrial
  • Automotive
  • Home appliances





Pricing Section
Global Stock:
124,810
USA:
120,410
Germany (Online Only):
4,400
800
Factory Stock:Factory Stock:
0
Factory Lead Time:
10 Weeks
Minimum Order:
1
Multiple Of:
1
Total
$1.06
USD
Quantity
Web Price
1
$1.06
30
$1.02
125
$0.965
300
$0.935
1,250+
$0.855
