Manufacturer Part #
555 Series Green 2 mm 40° 2.5 mcd Round Lens Diffused Circuit Board Indicator
Pls make note of the new time frame in regards to PCN 55524 / Dialight has moved the date from June to second and third week of July 2019. All government approvals have been made however construction is moving slower than originally expected.Description of Change: Moving the existing facility in Penang,Malaysia to a new larger expanded facility in Penang, Malaysia 6km away. There will be no change to current BOMs,standard operating procedures or equipment. The new site will be fully qualified by Dialight Operations,Engineering and Quality teams. Reason for Change: Move to new expanded facility 6km away required to provide improved effiencies and increased capacity to better support customer demands. Provide added space for the addition of lighting fixture assembly to support the Region and Australia.
Description of Change:Moving the existing facility in Penang,Malaysia to a new larger expanded facility in Penang, Malaysia 6km away. There will be no change to current BOMs,standard operating procedures or equipment. The new site will be fully qualified by Dialight Operations,Engineering and Quality teams. Product is form, fit, function and reliability the same with only a facility move to a larger Penang, Malaysia Site.
|Forward (Drive) Current:||4.7mA|
|Dimension:||H 7.49mm x L 7.62mm x W 2.54mm|
|Mounting Method:||Through Hole|
Features & Applications

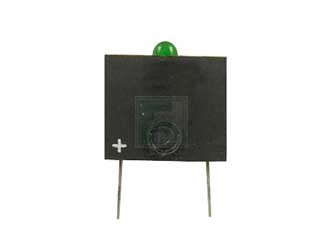

The 555-3303F is a part of 555-series Single 2 mm 40° 2.5 mcd Diffused 5 V Green LED Circuit Board Indicator. It has an Operating Temperature ranging between -55 °C to +100 °C .
- Green Color
- 565 nm Peak Wavelength
- Multiple CBIs form horizontal LED arrays on 2.54mm (0.100”) center-lines
- High Contrast, UL 94 V-0 rated, black housing
- Oxygen index: 31.5%
- Polymer content: PBT, 0.090 g
- Housing stand-offs facilitate PCB cleaning
- Solderability per MIL-STD-202F, method 208F
- LEDs are safe for direct viewing per IEC 825-1, EN-60825-1
