Dialight | 558-0101-003F

Manufacturer Part #

558-0101-003F

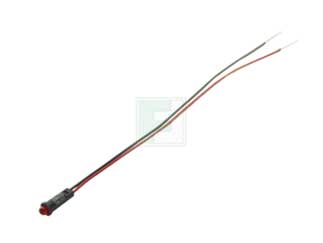

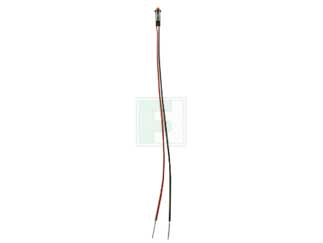

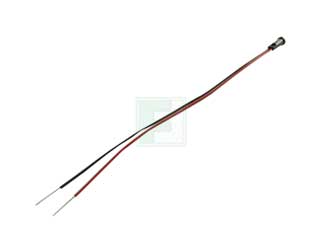

558 Series Red 3 mm 40° 10 mcd Diffused 10 mA 2 V LED Panel Mount Indicator

ECAD Model:
Mfr. Name: Dialight
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
Dialight 558-0101-003F - Technical Attributes
Attributes Table
Color: Red
Lens Type: Diffused
Forward Voltage: 2V
Forward (Drive) Current: 10mA
Intensity: 10mcd
Viewing Angle: 40°
Dimension: H  11.89mm x D  4.83mm
Mounting Method: Panel Mount
Features & Applications
The 558-0101-003F is a part of 558 series Red Color 3 mm 45° 10 mcd Diffused 10 mA 2 V LED Indicator Panel Mount. It has an Operating Temperature ranging between -25 °C to +85 °C.

Product Features:

  • Red Color
  • 650 nm Peak Wavelength
  • Available with a variety of LEDs
  • Designed for quick positive insertions in panels from .787mm [.031] through 1.57mm [.062] thick. Rec-ommended hole size from 3.94mm [.155] to 4.01mm [.158]. Wire: 26 AWG
  • Front panel mounting
  • Uniform illumination
  • Snap-in mounting requires no additional hardware
  • IC compatibleHousing meets UL94V-0
  • High reliability - 100,000 hour life
  • Black housing enhances LED contrast
  • Straight terminals suitable for wire-wrapping






Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
15 Weeks
Minimum Order:
800
Multiple Of:
100
Total
$800.00
USD
Quantity
Unit Price
100
$1.07
200
$1.05
300
$1.04
400
$1.03
500+
$1.00
