Dialight | 559-2101-003F

Manufacturer Part #

559-2101-003F

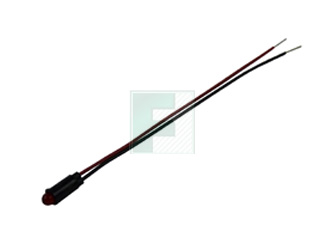

559 series Red 7.4 mm 50° 7 mcd 10 mA 2.2 V Snap-In LED Panel Mount Indicator

ECAD Model:
Mfr. Name: Dialight
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
Dialight 559-2101-003F - Technical Attributes
Attributes Table
Color: Red
Lens Type: Diffused
Forward Voltage: 2.2V
Forward (Drive) Current: 10mA
Intensity: 6.3mcd
Viewing Angle: 50°
Mounting Method: Panel Mount
Features & Applications

The 559-2101-003F is a part of 559 series RED Color 6-inch Wire Lead 7 mcd Intensity, Diffused 20 mA 2.2 V Snap-in Led Indicator. It has an Operating Temperature ranging between -20 °C to +85 °C.

Product Features:

  • Red Color
  • Housing Black PBT, UL94V-0
  • LED Type High Efficiency Snap-In LED
  • Mounting Method is Snap In
  • Compliancy Front of Panel, UL94V-0
  • Termination: 24 AWG, 6" Wire Lead
  • .250" Mounting Hole Size
  • Panel Thickness 0.031" - 0.062"
  • Diffused
  • Luminous Intensity Typical 7
  • Forward Current mA 20 mA
  • Voltage 2.2 VDC
  • Operating Temperature -20 °C to +85 °C
  • Storage Temperature -30 °C to +100 °C



Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
26 Weeks
Minimum Order:
900
Multiple Of:
100
tariff icon
Tariff charges may apply if shipping to the United States. An estimate of tariff charges will be calculated at checkout.
Total
$823.50
USD
Quantity
Unit Price
100
$0.975
200
$0.955
300
$0.945
400
$0.94
500+
$0.915
