Manufacturer Part #
LTST-C150KDKT-10A

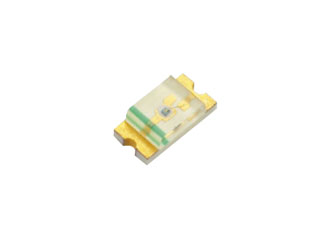

LTST Series 2.4 V 10 mA Water Clear Ultra Bright AlInGaP Surface Monut Chip LED
| | |||||||||||
| | |||||||||||
| Mfr. Name: | LITEON | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:3000 per Reel Mounting Method:Screw Mount | ||||||||||
| Date Code: | 2520 | ||||||||||
LITEON LTST-C150KDKT-10A - Product Specification
Shipping Information:
ECCN:
PCN Information:
Description of change:In line with strategic growth, LITEON Technology Corporation has added an additional site (LITEON Thailand) to expand SMD capacity for improvement in manufacturing efficiency and delivery performance since 2020. There are no differences in materials used as compared to those of the currently approved LITEON SMD production line. With existing Tianjin, Changzhou factory and the additional Thailand factory, LITEON will continue to ensure better product quality, lead-time and delivery schedule to our customers. Classification of change:Production line expansion.
Subject: An additional manufacturing site for SMD ChipLED C150/C170/C171 product families in Thailand. Description of change: In line with strategic growth, Lite-On Technology Corporation will add an additional site (Lite-On Thailand) for improvement in manufacturing efficiency and delivery performance. There would be no differences in materials used as compared to that of the currently approved Lite-On SMD production line. Lite-On will continue to ensure better product quality, lead-time and delivery schedule to our customers. Reason for change: An additional manufacturing site for SMD ChipLED C150/C170/C171.
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=LTST-C150KDKT-10A&field4=LITEON&field18=https://p1na.futureelectronics.com/p/semiconductors--optoelectronics--leds/ltst-c150kdkt-10a-liteon-6137471
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=LTST-C150KDKT-10A&field4=LITEON&field18=https://p1na.futureelectronics.com/p/semiconductors--optoelectronics--leds/ltst-c150kdkt-10a-liteon-6137471
LITEON LTST-C150KDKT-10A - Technical Attributes
| No of LEDs: | 1 |
| Color: | Red |
| Lens Type: | Clear |
| Forward Voltage: | 2.4V |
| Forward (Drive) Current: | 20mA |
| Intensity: | 28mcd |
| Viewing Angle: | 130° |
| Wavelength: | 650nm |
| Operating Temp Range: | -30°C to +85°C |
| Storage Temperature Range: | -40°C to +85°C |
| Case Size: | 1206 (3216 Metric) |
| Dimension: | H 1.1mm x L 3.2mm x W 1.6mm |
| Moisture Sensitivity Level: | 3 |
| Part Number Aliases: | LTST-C150 |
| Mounting Method: | Screw Mount |
Available Packaging
Package Qty:
3000 per Reel
Mounting Method:
Screw Mount
