  5. 7511A85

VCC | 7511A85

Manufacturer Part #

7511A85

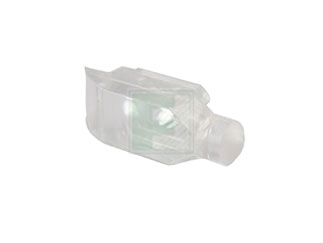

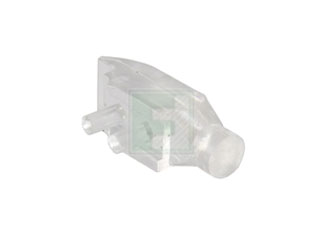

7511A Series Single 3 mm Round Flat Top Press Fit Right Angle Optical LightPipe

ECAD Model:
Mfr. Name: VCC
Standard Pkg:
Product Variant Information section
Date Code: 2524
Product Specification Section
VCC 7511A85 - Technical Attributes
Attributes Table
Configuration: 1
Lens Style/Size: Round 3 mm
Color: Clear
Mounting Method: PCB Mount
Features & Applications

The 7511A85 is a single position PCB mount optical light pipe with 3 mm diameter round lens.

Features:

  • Precision engineered with ray tracing for bright, optically precise even indication and attractive appearance
  • ESD protection from circuitry for exeptional reliability
  • Designed for use with Bright?Chips™ LEDs
  • High contrast and wide viewing angle for greater visibility
  • Available in a variety of colors for added contrast and aesthetics
  • Parts inserted after reflow to permit LED pad inspection before assembly
  • Available in UL94V-O
  • Low profile for height constrained applications
  • Large lens provides high visibility
  • All 3 models have matching center lines to allow for side-by-side mounting
  • All dimensions in inches (mm)





Pricing Section
Global Stock:
4,000
USA:
4,000
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
9 Weeks
Minimum Order:
1
Multiple Of:
1
Total
$0.86
USD
Quantity
Unit Price
1
$0.855
30
$0.83
100
$0.805
200
$0.79
500+
$0.755
