Manufacturer Part #
M41T93RQA6F

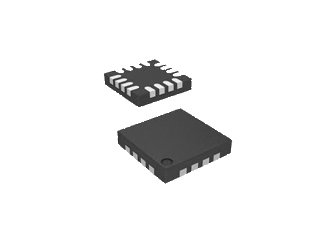

M41T93 Series 5.5 V Serial SPI Bus RTC With Battery Switchover -QFN-16
| | |||||||||||
| | |||||||||||
| Mfr. Name: | STMicroelectronics | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1000 per Reel Package Style:QFN-16 Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
STMicroelectronics M41T93RQA6F - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=Asia&field16=en&field2=M41T93RQA6F&field4=STMicroelectronics&field18=https://p1apac.futureelectronics.com/p/semiconductors--real-time-clocks/m41t93rqa6f-stmicroelectronics-6186413
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=Asia&field16=en&field2=M41T93RQA6F&field4=STMicroelectronics&field18=https://p1apac.futureelectronics.com/p/semiconductors--real-time-clocks/m41t93rqa6f-stmicroelectronics-6186413
STMicroelectronics M41T93RQA6F - Technical Attributes
Attributes Table
| Date Format: | DW:DM:M:Y/Binary |
| Time Format: | HH:MM:SS:hh/Binary |
| Interface: | SPI |
| Non-Volatile Memory Size: | 7B |
| Supply Voltage-Nom: | 2.7V to 5.5V |
| Temperature Grade: | Industrial |
| Operating Temp Range: | -40°C to +85°C |
| Storage Temperature Range: | -55°C to +125°C |
| Package Style: | QFN-16 |
| Mounting Method: | Surface Mount |
Features & Applications
The M41T93RQA6F is a 5.5 V supply voltage, low power serial SPI Bus Real-Time Clock with a built-in 32.768 KHz oscillator, available in surface mount QFN-16 package.
This device has a built-in power sense circuit which detects power failures and automatically switches to the battery supply when a power failure occurs. The energy needed to sustain the clock operations can be supplied by a small lithium button battery when a power failure occurs.
Features:
- Ultra-low battery supply current of 365 nA
- Factory calibrated accuracy ±5 ppm guaranteed after 2 reflows (SOX18)
- Much better accuracies achievable using built-in programmable analog and digital calibration circuits
- 2.0 V to 5.5 V clock operating voltage
- Counters for tenths/hundredths of seconds, seconds, minutes, hours, day, date, month, year, and century
- Automatic switchover and reset output circuitry (fixed reference)
- M41T93R: VCC = 2.7 V to 5.5 V (2.55 V ≤ VRST ≤ 2.70 V)
- Compatible with SPI bus serial interface (supports SPI mode 0 [CPOL = 0, CPHA = 0])
- Programmable alarm with interrupt function (valid even during battery backup mode)
- Optional 2nd programmable alarm available
- Square wave output (defaults to 32 KHz on power-up) RESET (RST) output
- Watchdog timer
- Programmable 8-bit counter/timer
- 7 bytes of battery-backed user SRAM
- Battery low flag
- Low operating current of 80 μA
- Oscillator stop detection
- Battery or SuperCap™ backup
- Operating temperature of –40 °C to +85 °C
- Package options include:
- a 16-lead QFN or an 18-lead embedded crystal SOIC
- RoHS compliance: lead-free components are compliant with the RoHS directive
Pricing Section
Global Stock:
0
Singapore:
0
On Order:
0
Factory Lead Time:
24 Weeks
Quantity
Unit Price
1,000+
$3.97
Product Variant Information section
Available Packaging
Package Qty:
1000 per Reel
Package Style:
QFN-16
Mounting Method:
Surface Mount
