Same Sky — AMT Modular Encoders

Same Sky - CUI Devices

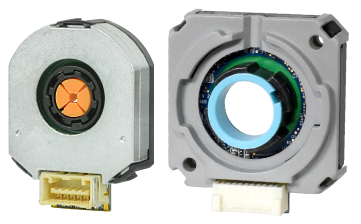

Same Sky AMT Modular Encoders

Available in incremental, absolute, and commutation versions

Same Sky’s AMT modular encoders—available in incremental, absolute, and commutation formats—leverage advanced capacitive sensing technology to deliver rugged, high-accuracy performance.

With up to 22 programmable resolutions and support for shaft sizes ranging from 1 mm to 5/8 inch, the AMT series offers engineers exceptional design flexibility and helps purchasing teams streamline procurement by reducing the number of SKUs required for production.

Features

Incremental

  • 22 programmable resolutions up to 5120 PPR
  • Quadrature A, B channels
  • Single pulse index per revolution
  • CMOS voltage or quadrature line driver outputs
  • Sleeve bore options from 1 mm to 15.875 mm (5/8 in)

Absolute

  • 12-bit or 14-bit resolutions
  • SPI, SSI, or RS-485 interfaces
  • Single-turn or multi-turn outputs
  • Sleeve bore options from 2 mm to 15.875 mm (5/8 in)
  • One Touch Zero™ feature

Commutation

  • Programmable incremental resolutions up to 4096 PPR
  • 3 phase U, V, W commutation signals
  • Programmable 2, 4, 6, 8, 10, 12 & 20 brushless motor poles
  • CMOS voltage or line driver outputs
  • Sleeve bore options from 2 mm to 15.875 mm (5/8 in)
  • One Touch Zero™ feature



Same Sky AMT Modular Encoders
